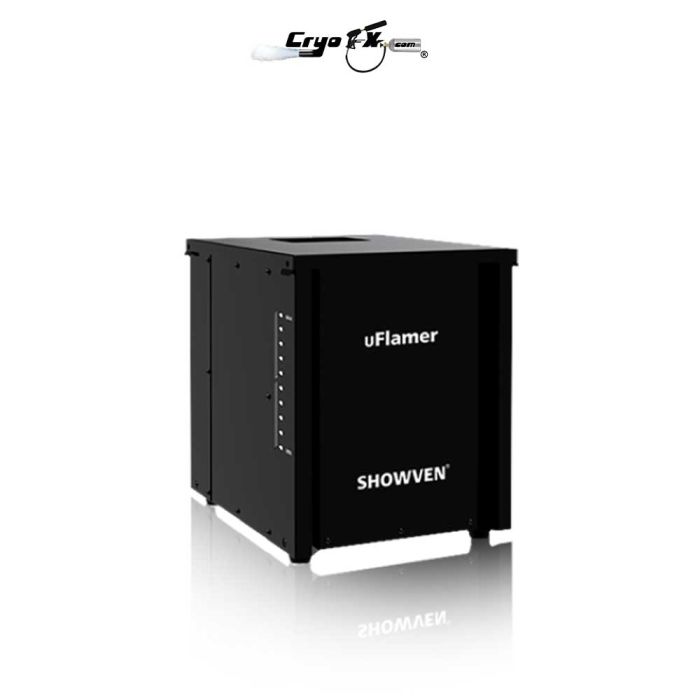

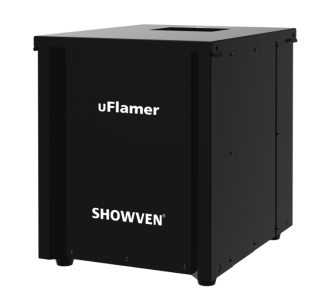

Showven uFlamer

Showven uFlamer DMX Flame Machine is perfect for stages and event looking for a DMX Flame Machine / DMX 512 Pyro Machine.

The Showven uFlamer Machine, also known as a High Output Showven Pyro Machine has many features for professional stages.

Features and advantages for Showven uFlamer

• Fluid driven vertical flamer original designed by SHOWVEN
• Flame up to 8-10m (no wind)
• Super compact pumping system design, easy carrying
• Stainless steel housing, reliable and durable
• IPX3 waterproof design
• Built-in 5L fuel tank, equals to 83s effects. Support external tank
• No external hose connection needed, easier for setup
• Safety lock with switchable test mode, safer for service
• Tilt protection, the tilt sensor will be activated when machine slant Over 45°.
• Intelligent control system, safer for use
• Standard DMX control, compatible with all DMX console
• Machine running status monitoring with SHOWVEN host controller
• Built-in battery design (Optional, and customer can buy battery locally)

Specifications for Sparkular Flame / Pyro Machine:

• Dimension: 330 x 260 x 320 mm
• Weight: 14kg
• Input: 100-240VAC, 50/60 Hz
• Work power: 300W
• Housing Material:304 stainless steel
• Effect direction:Vertical
• Flame Height:8-10m (no wind)
• Fuels:ISOPAR G, H, L, M ISOPROPANOL
• Fuel Tank Capacity:5.0L
• Fuel Consumption Rate:Nozzle M: 60ml/s
• Interface:NEUTRIK POWERCON TRUE1 IN/OUT
• Waterproof 3-pin and 5-pin XLR IN/OUT
• Control:DMX
• Ignition:High Voltage Electron Ignition
• Built-in Battery Design:Yes, Battery optional
• Waterproof Level:IPX3

_____________________________________________________________________________________

Showven Technologies Co., Ltd.

Δ Foreword
Thanks for choosing SHOWVEN uFlamer, we wish it will bring you lots of exciting moments. Please read
the following manual carefully before operating this product. Operate according to instructions is very
important for safety, and can elongate the service life of the machine
Strictly follow the instruction in the manual when operate uFlamer. If you have any doubts, please contact
SHOWVEN technologies Co., Ltd by [email protected]
We assume the person who use or come in contact with the device are familiar with how the device
should be handled. This includes proper use, maintenance and repair of the machine as defined in this
user manual.

Δ Warning
\ This product is only suitable for qualified or skilled operators who has experience with the technology
of the device and is particularly informed about the types of fuel used by the device.
\ Unauthorized repair are prohibited, it may cause serious incident
\ Make sure power supply in consistent with the rated voltage of the equipment, and the socket must
well grounded. Unplug and turn off the machine when not use
\ Before connect the power cable, communication DMX cable should well connected and ensure the
command keep at firing OFF status. And safety lock of uFlamer stay at TEST MODE.
\ Before power on the machine, please check carefully the safety distance and make sure it meets the
requirements in this manual.
\ The device can only be placed horizontally.
\ After turning on the device, no person allows to stay in the danger area. Ensure all persons that are
part of the show be informed about the safety distance, risks and functions of the device
\ Always have a CO2 fire extinguisher and an extinguishing blanket in case of needed
\ If there be any doubt as to the safety operation of the device in any circumstances, the device should
be taken out of service immediately. Be sure the device is in good operating condition before use. If fail
to fire correctly, immediately shut down and check it accordingly
\ Be sure to use high quality flame fluid, otherwise, it is easily leads to failure or danger. Be careful when
refill the flame fluid tank. Please keep flame fluid away from heat source, sparks, fire or other possibility
of ignition. Do not smoke!
\ The operator responsible for the control of uFlamer must always have a clear view of the device, so that
he/she can stop the show immediately when there is danger. The main AC power switch should near
operator. So that operator can turn off the power of all devices in case of abnormal
\ The device shall not be altered and applied to other use purpose

Δ Disclaimers
SHOWVEN technologies Co., Ltd. excludes liability for unsafe situations, accidents and damages resulting
from:
1. Ignoring warnings or regulations as shown on flamer or this manual.
2. Use for other applications or circumstances other than those indicated herein.
3. Changes to the flamer, including use of non-original spare parts.
4. Removed safety cover without authorization from SHOWVEN.
5. Use this machine by unqualified or untrained personnel.
6. Improper use of machine.

Δ Functional Characteristics
\ Fluid driven vertical flamer original designed by SHOWVEN
\ Flame up to 8-10m, indoor nozzle optional
\ Dual igniter, built-in pump, plug and play system
\ Super compact pumping system design, easy carrying
\ Stainless steel housing, can be used in rainy weather, reliable and durable
\ Built-in 5L fuel tank, no external hose connection needed
\ Safety lock with switchable test mode, safer for service
\ Tilt protection, the tilt sensor will be activated when machine slant Over 45°
\ Intelligent control system, safer for use
\ Standard DMX control, compatible with all DMX console
\ Neutrik® powerCON TRUE1 connectors
\ Built-in battery optional

Δ Technical Specifications
\ Model: uFlamer
\ DIMENSION: 330× 260× 320mm
\ WEIGHT: 14kg
\ VOLTAGE: 100-240V, 50/60Hz
\ POWER: 300W
\ CONTROL: DMX
\ INTERFACE: 3-pin&5-pin DMX IN/OUT
\ FLAME HEIGHT: 8-10m (no wind)
\ FUEL: ISOPROPANEL, ISOPAR-G,H,L,M
\ FUEL TANK CAPACITY: 5L
\ FUEL CONSUMPTION RATE: 60ml/s(M), 30ml/s(L), 15ml/s(EL)
\ FUEL LEVEL SENSOR: YES
\ EFFECT DIRECTION: Vertical
\ LGNITION: High voltage electron ignition
\ IGNITOR: Dual
\ BUILT-IN BATTERY: OPTIONAL
\ USAGE IN RAIN: YES

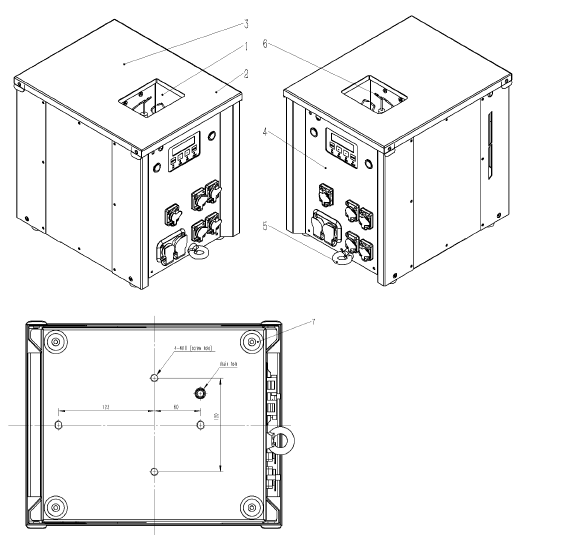

Δ Structure of uFlamer

1. Firing Box
2. Top Panel
3. Fuel Bottle Area
4. Control Panel
5. Safety Loop
6. Igniter (dual)
7. Feet

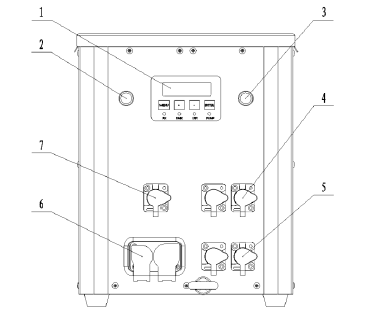

Overview of Control Panel

1. LCD screen operate panel
2. ON/OFF switch (pressurized indicator light, blue LED)
3. Safety Lock (safety indicator light, red LED)
4. 5-pin DMX socket (5-PIN XLR IN can charge for wireless DMX pen through pin1 and 4, pin4 with
DC5V power supply)
5. 3-pin DMX socket
6. Power socket
7. Charging Input

Δ Operation Panel

1. LED Display Area:
RX: Radio receiving (reserved)
DMX: DMX signal. Flash means DMX signal available, otherwise no DMX signal
ERR: Light on when there is an error
PUMP: Light on when pump is running
2. Button Functions:
MENU: Switch interface to setup parameter
+: Parameter Up
-: Parameter Down
ENTER: Confirm and save parameters (screen will flash when parameters saved)
Note: screen display will switch to main interface if there is no operation in 15s.
3. Welcome Interface :

First Line: Product model and software version
Second Line: Equipment series number
4. Main Interface:

First Line:
Operational DMX address (FIRE) and Safety DMX address (safe) under DMX Channel Mode 2CH-P;
DMX address under DMX Channel Mode 6CH and 2CH-N;
Second Line: Pressure 75 (e.g. 100=10bar); V: 13.6 means internal voltage is 13.6V.
5. Alert Message:

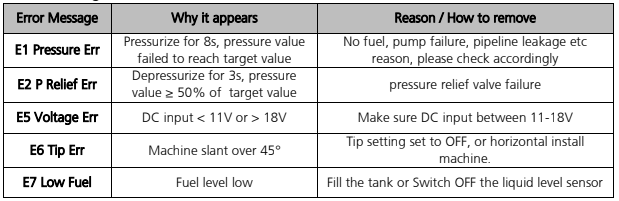

6. Error Message:

7. Interface setup:
Press “MENU” to switch through setup menu, press and hold “MENU” 3s back to main interface.

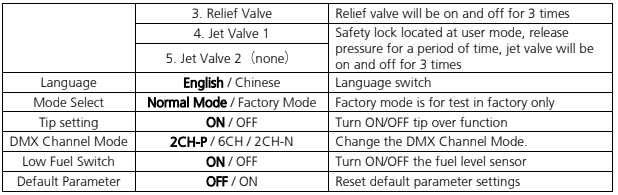

8. Advanced Interface:
Press “MENU” 3s enter advanced interface, press “MENU” to switch interface, press “MENU” 3s can
back to main interface. The value in bold character is default value.

Δ DMX CONTROL

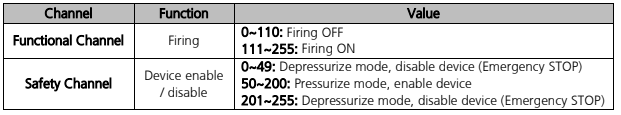

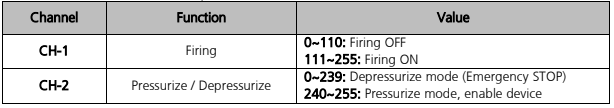

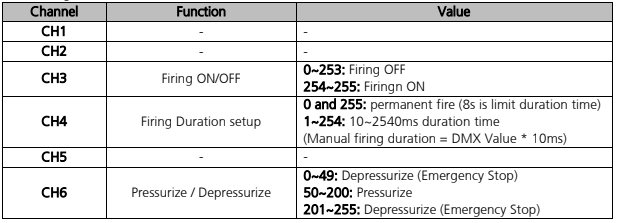

uFlamer with 3 different channel mode: 2CH-P, 2CH-N and 6CH.
2CH-P:
In this channel mode uFlamer occupies 1 functional channel and 1 separate safety channel (this channel is
independent from operational channel, can be shared with other machine).

2CH-N:
In this channel mode uFlamer occupies 2 functional channel.

6CH:
In this channel mode uFlamer occupies 6 functional channel. This channel mode is designed to control the
uFlamer together with CIRCLE FLAMER on our Host Controller.

Δ Control with SHOWVEN Host Controller ZK6200/ZK6300
If use SHOWVEN Host Controller ZK6200 or ZK6300 to program the uFlamer, after set DMX channel

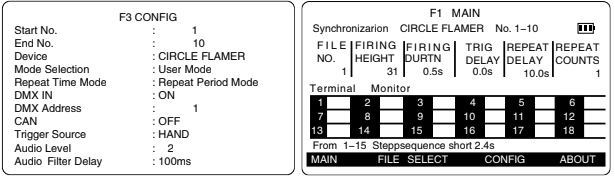

mode on uFlamer please also set on Host Controller. The setting step is:
Press “F3” on Host Controller – find “Device” – choose the right device “CIRCLE FLAMER” (6CH mode).
Host Controller with bi-directional communication with device, please allocate a unique DMX address for
each unit of uFlamer.
FIRING HEIGHT is meaningless, just need to set the FIRING DURATION.

Δ Operation
1. Safety Distance
Definition and Instructions
Safety distance for uFlamer divided into two parts safety radius around machine (a) and safety distance at
firing direction (b). No person and flammable materials are allowed to stay inside the safety isolation zone
when flamer was armed.

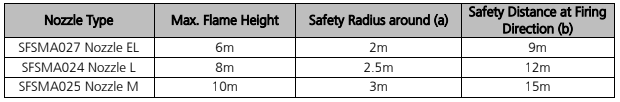

The safety radius around machine depends on the firing height (nozzle size).
For safety distance at firing direction equals to maximum firing height * 1.5.

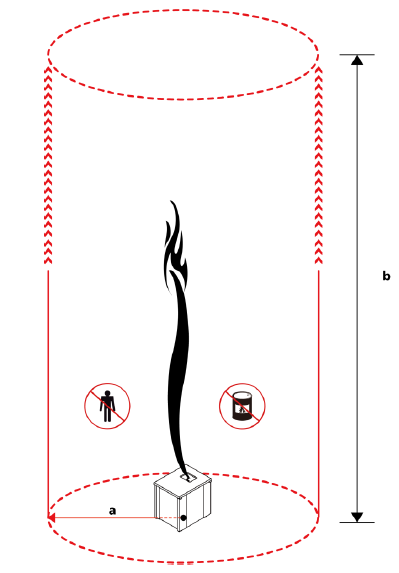

The uFlamer safety isolation zone (show as below) is a cylindrical three-dimensional space with Safety
radius around machine (a) and Height of b. Unauthorized persons and objects are strictly prohibited from
entering.
For angled installation, the safety distance both around machine and firing direction should shift
accordingly.

Safety distance in windy environment
The safety isolation zone radius (a) increase with wind direction and wind speed (v, m/s). The safety
distance in windy conditions can be calculated as below:
For Nozzle L: a = 2.5 + v;
For example when the wind speed is 3m/s, we use the Nozzle L, then the safety isolation zone radius
should be 5.5m.
CAUTION:
When the wind speed ≥ 8m/s (wind force ≥ 5), please use it with caution. When wind speed ≥ 17m/s
wind force ≥ 8 , please stop use flamer.

Safety mark

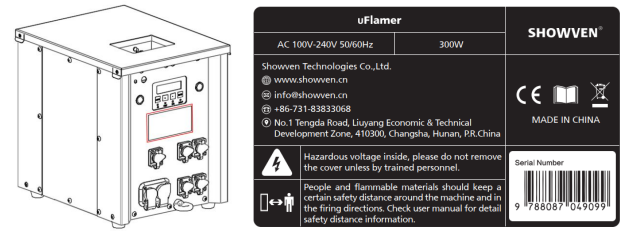

Label of uFlamer

Fuels for uFlamer
1. Water content in fuel should less than 0.5%
2. For maximum safety, please use fuel with flash point between 60-80°C, ISOPAR L is highly
recommended.
3. Ethanol is not suggested due to three reasons, first ethanol is highly flammable makes it not as safe as
ISOPAR; secondly the color of flame is very weak; thirdly there are always high water content (> 0.5%)
in ethanol.
4. Colored fuels are forbidden to use on uFlamer it may damage the machine.
SHOWVEN excludes liability for the losses, damages and accidents caused by not using qualified fuels in
accordance with this requirement.
Always have a dry powder fire extinguisher, a CO2 fire extinguisher and an extinguishing blanket next to
the equipment in case of needed. And someone must be on duty during operation. In case accident
occurs, a dry powder fire extinguisher can be used when the fire is large, and a carbon dioxide fire
extinguisher can be used when the fire is small.

2. Install uFlamer
a) Choose the correct nozzle, ensure the installation position of uFlamer meet above safe distance
requirements. New uFlamer supplied with a nozzle M which generate up to 10m flame.

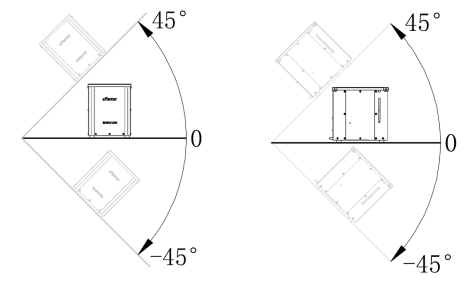

b) Horizontal installation is preferred for uFlamer. If need to install uFlamer in angles, to avoid fake
error message please turn the TIP Setting and Low fuel switch to OFF status first. uFlamer with
maximum tilt angle of 45° or -45°, and it can be angled to two directions as show in below picture.
Besides please be aware the fuel level in fuel tank to avoid fuel leakage when tilt installation.
c) For truss installations always connect with safety rope to ensure extra safety. If there is any other
national or regional guidelines please follow it accordingly.
d) Double confirm the machine was firmly installed.

3. Connect Power and DMX cable to uFlamer
Before power and/or DMX cable connection, make sure safety button of uFlamer stay at TEST MODE.

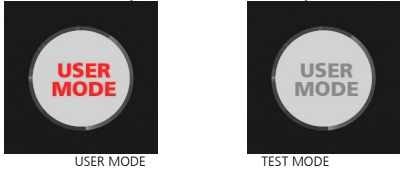

When safety button is pressed down, it is USER MODE; when it pops up, it is TEST MODE. So before
connect power and DMX cable make sure the safety button of uFlamer pops up.
a) Connect a power cable to the POWER IN socket of uFlamer. Connect the other end of power cable
to the power source. Make sure power supply in consistent with the rated voltage of the equipment,
and the socket must well grounded.
b) Each unit of uFlamer can be connected to power supply directly. If connect machine in sequence,
please connect a power link cable to the POWER OUT of previous machine, connect the other end of
the power link cable to POWER IN of the next machine. Do not connect exceed units to a single
electrical circuit.
c) Power on all uFlamer. Check the safety button, double confirm it stays at “TEST MODE”.

d) Assign DMX address for each unit of uFlamer. If use SHOWVEN host controller or FXcommander to
control the machine please allocate a unique DMX address for each unit of machine.
e) Connect a DMX cable to the DMX IN socket of first unit of uFlamer, another head of this DMX cable
connect to DMX console (such as FXcommander). Make sure the DMX console is powered off.
f) Connect a DMX cable to the DMX OUT socket of previous uFlamer, and the other end to the DMX
IN of next machine. Connect all devices in series in this way.
g) Suggest to plug in a DMX terminator into the DMX OUT in last unit of machine to improve signal
reliability. Signal amplifier is required for long distance (>200m) DMX signal transmission.

4. Power ON the DMX console and programming
Power on DMX console and program the uFlamer effect on DMX console

5. Test the ignition function of uFlamer
Test the ignition function of uFlamer, we can check whether the igniters of each unit of uFlamer is
working fine. Due to the safety switch is stay at TEST MODE the pump won’t work, there will be only
ignition while no fuel spray out, so no flames generated.

6. Fill the uFlamer
Please fill the machine with qualified fuel. The fuels suggested on uFlamer are ISOPAR, ISOPROPANOL,
please make sure water content in fuel should less than 0.5%.

7. Firing
a) Double confirm the prescribed safety isolation zone is clear, no person, animal or other property
within this region.
b) Switch the safety button of uFlamer to USER MODE.

c) Pressurize uFlamer.
d) Firing, the operator should always have a clear view of the device, so that he/she can stop the show
immediately when there is danger.

8. Depressurize
Depressurize all uFlamer after use or if not use for a long time during the show we also suggest to
depressurize to ensure the safety.

9. Power OFF
a) Power OFF DMX console
b) Switch safety switch of uFlamer to TEST MODE
c) Power OFF uFlamer
d) Unplug power cable, DMX cable.

Δ Nozzles and Nozzle Replacement
Nozzle M: (standard configuration)
Short flame: 5-7m,
Long flame: 8-10m.
Nozzle L:
Short flame: 3-5m,
Long flame: 6-8m.
Nozzle EL:
Short flame: 3-4m,
Long flame: 4-6m.

Nozzle Replacement
Use 14mm outer hexagon socket wrench to disassemble the nozzle, clean the nozzle and nozzle socket
with air gun (air compressor), change a different nozzle and install it.

Nozzle Installation available in new design
Please assemble the stailess steel gasket(RMSMA530), O ring and nozzle main part according to below
picture. The O ring should be inside the stailess steel gasket, otherwise it may leads to fuel leakage.
Use nozzle replacement tool outer hexagon socket wrench to tighten the nozzle.

Δ Igniter Position Adjustment

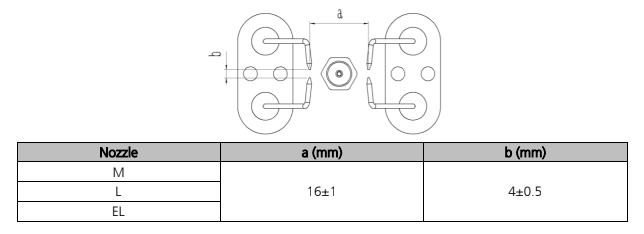

Whenever changed the nozzle or ignition is not good, please check igniter pole position according to
below parameters. Check the ignition success rate after adjustment by firing.

Note: Do unplug the power cable when service flamer.

Δ Battery Recommendation

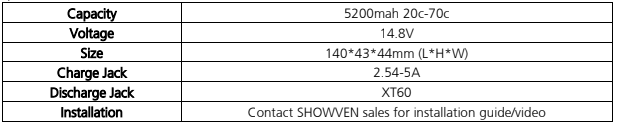

uFlamer can be driven by battery, you can order battery from us directly or buy it locally. The battery
specifications are as below:

Δ Maintenance
1. To maintain the system in good performance and running status, it is recommended to running the
device at least once per month.
2. Check the ignition probes both before and after each show, if there is any foreign objects on it please
clean it up.
3. Maintenance of the nozzle: Nozzle needs to be cleaned from time to time, and it is recommended that
once every six months (depending on the environment and frequency of use). In the process of using
the equipment, if the flame shape is seriously deformed or the fuel injection line is significantly
deformed or coarsened, the nozzle should be removed immediately for cleaning. If after clean, there
are still problems please replace new nozzle.
4. Maintenance of the O-ring: If it is found that the O-ring of the nozzle is damaged or ageing when
cleaning the nozzle, the O-ring should be replaced in time (material and size of O-ring: fluororubber O-
ring, the outermost diameter is 14 mm, and the line diameter is 2 mm).

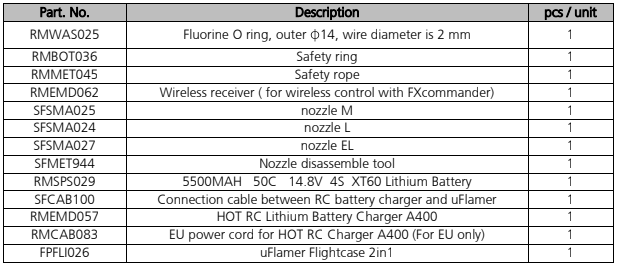

Δ Optional Parts for uFlamer

Δ Warranty Instructions
\ Sincere thanks for your choosing our products, you will receive quality service from us
\ The product warranty period is one year. If there are any quality problems within 7 days after shipping
out from our factory, we can exchange a brand new same model machine for you
\ We will offer free of charge maintenance service for machines which with hardware malfunction
(except for the instrument damage caused by human factors) in warranty period. Please don't repair
machine without factory permission
Below situations NOT included in warranty service:
\ Damage caused by use unqualified fuels;
\ Damage caused by improper transportation, usage, management, and maintenance, or damage caused
by human factors;
\ Disassemble, modify or repair products without permission;
\ Damage caused by external reasons (lightning strike, power supply etc.)
\ Damage caused by improper installation or use;

For product damage not included in warranty range, we can provide paid service.
Invoice is necessary when applying for maintenance service from SHOWVEN
