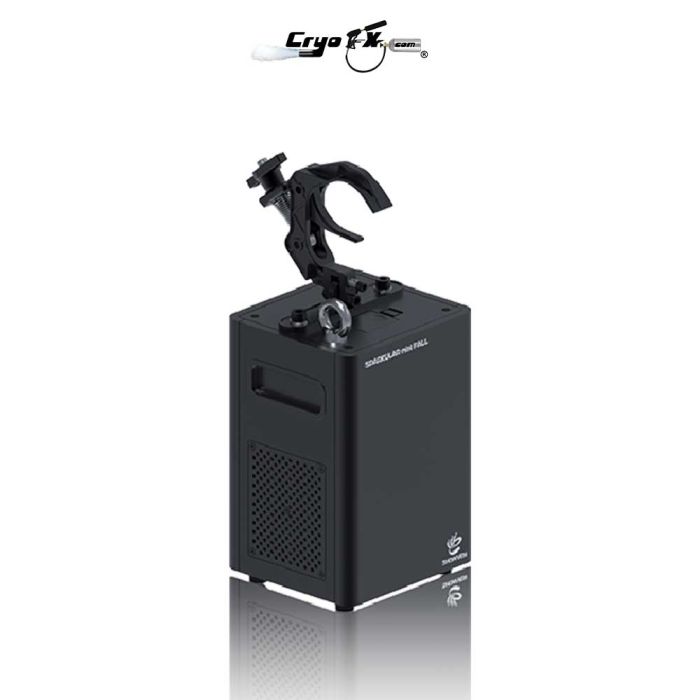

Showven Sparkular Mini Fall Cold Spark Machine

Showven Sparkular Fall Mini Machine - Indoor Firework Fountain Effects System

Showven Sparkular Mini Fall indoor pyrotechnics Spark safe indoor display sparkler fountain.

SPARKULAR miniFALL is newest innovation by SHOWVEN with its patented state-of-the-art D-QUIET technology, which ensure the working noisy below 50DB. Enhanced energy saving technology with optimized structure and channel design makes SPARKULAR miniFALL into a new level on size, weight and power consumption. It is an ideal sparks effects solution for party, stage, clubs, studios etc.
Specifications


• Model: BT14
• Dimension: 150×160×240mm
• Net Weight: 3.0kg
• Input: 220V (BT14) / 110V (BT15), 50/60Hz
• Work power: 130W
• Work power: 130W
• Hopper capacity: 280g
• HC8200 consumption: 15g/min
• Casing material: Anti-Flaming ABS
• Fall length:2-3m (HC8200 MEDIUM), 3-4m (HC8200 LARGE)
• Control: DMX, Wireless Remote
• Adaptable truss size: 40-60mm
• Interface: Neutrik PowerCON IN/OUT, DMX IN/OUT
• Packing size: 260×235×295mm(single unit)/545×495×320mm (4 units)/705×665×480mm

The Showven Sparkular Fall FX system produces a fantastic, non-hazardous gerb effect that looks exactly like traditional fireworks or jet burst pyrotechnics.

The effect is simply created using a Showven Sparkular Mini Fall machine, also called a Cold Spark machine and a special granulated alloy, removing the need for gunpowder or traditional pyrotechnic techniques. The duration and height of the effect can be varied throughout a display, with sequences of 'dancing' sparks created to entertain audiences.

The Showven Sparkular Mini system operates at such cool temperatures; the sparks themselves are not flammable. The machines are also very smart and have multiple built-in safety protocols. You can control the start and stop of the effect at anytime, and the system is keycard locked so the machine cannot be abused in any manner. You now can control the time, height, volume this has never been achieved from a machine ever. This is beginning of a new technology to the world of stage of effects.


• No hazardous materials to transport or store on site.
• Much safer than using traditional pyrotechnics.
• No large safety or exclusion zones are required as the units produce cold fallout which is perfectly safe (the audience can pass their hands through the effect without any concern).
• Can be used in locations where fireworks and pyrotechnics are not permitted.
• Up to 15 minutes of effect can be produced from just one powder refill (equivalent to 1800 x 0.5 second pyrotechnic gerbs). This makes the system far more cost-effective.
• Low smoke output.
• Rigging time and crew requirement is dramatically reduced when compared to traditional pyrotechnics, again, making them far more cost-effective.
• Variable duration and height of the effects is achievable.
• The system is ideal for permanent installations or multiple date productions as they remove the need for re-loading.
• Remote control via DMX or the available dedicated Host controllers

SPECIFICATIONS - Sparkular Fall Machine

• Model： BT14
• Dimension： 150×240×160 mm
• Weight： 3.0 kg
• Input： 220 VAC (BT04) /110 VAC (BT05), 50/60 Hz
• Work Power： 130 W
• Work Temp.： -10 ℃~50 ℃
• Interface： Double DMX/AC power input interfaces
• Adaptable Truss Size： 40-60 mm
• FALL Length： 2 m-7 m, according to different HC8200

SPECIAL FEATURES - Fall Sparkular FX Machine

• Indoor  /  Outdoor usage
• Very low smoke, dissipates fast
• Sparkular effect from granules
• No smell from pyro
• Up to 15-20 minutes of shoot time per granules
• Easy set up multiple locations
• Height 2-4 meters
• Simple integration into musical synchronous shows
• Run up to 54 units in series VIA DMX cables

_________________________________________________________________________________

Showven Technologies Co., Ltd.

Thanks for choosing SPARKULAR® miniFALL, we wish it will sparks up your
show.
Please read the following manual carefully before operating this product.

Δ Safety Instructions
\ Unauthorized repair are prohibited, it may cause serious incident.
\ Keep SPARKULAR® miniFALL dry and do NOT use in rain or snow.
\ Make sure lid of feeding hopper are well covered when use SPARKULAR® miniFALL.
\ Accidentally burning of consumable can only use sands to extinguish.
\ Consumable should keep away from moisture and stored in a dry sealed environment.
\ Check whether there is consumable aggregate in the output nozzle both before and after
each show, if any, please clean it up, or it will affect the firing effect, damage machine, even
cause serious incident.
\ The SPARKULAR® miniFALL power supply cable maximum allowed cascade of 12pcs, exceed
connecting may result in damage or even cause fire.
\ For better heat dissipation, block the air intake and air outlet is prohibited.
\ Cover the output nozzle of SPARKULAR® miniFALL is forbidden, inspect the machine before
each show, making sure no objects or material will block the output nozzle.
\ Never touch the nozzle of SPARKULAR® miniFALL, danger of getting burnt.
\ Never touch the sparks which shooting out from the nozzle.
\ Make sure no staff, audience and flammable materials stays under the SPARKULAR®
miniFALL.

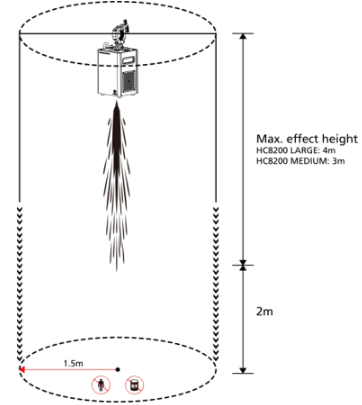

Safety Distance
\ Keep audience and flammable material at a minimum distance of 1.5m from SPARKULAR®
miniFALL.
\ Make sure sparks shoot out from SPARKULAR® miniFALL can NOT touch any objects. And
keep a clearance with minimum 2m from the setting maximum effect length.
\ Human, animal or flammable materials are not allowed to close to the underside area where
hanging SPARKULAR® miniFALL.
\ In windy environment, increase the safety distance according to the wind direction and speed.
\ The safety zone area changes accordingly when machine installed in tilt position. Please
increase the safety distance in the direction which machine tilt.
\ Sparks and consumables from the machine can lead to serious eye injury. Always wear safety
goggles when enter the safety zone.

Δ Description
SPARKULAR® miniFALL (NEW) is a new update based on previous version, it based on our new
spark generation platform and adopts a new feeding structure which greatly prolongs the stab
ility of machine. It is an ideal sparks waterfall effects solution for party, stage, clubs, studios etc.

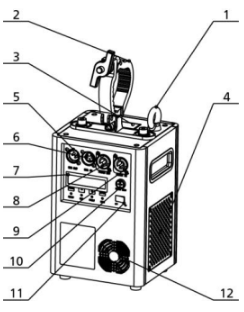

Δ Structure of SPARKULAR® miniFALL

1. Safety Loop;
2. Clamp
3. Feeding Hopper
4. Heat Dissipate Area
5. DMX OUT
6. DMX IN
7. LCD Screen
8. POWER OUT
9. POWER IN
10. Fuse
11. Power Switch
12. Cooling Fan

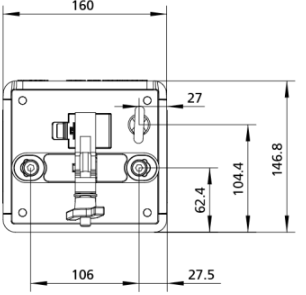

Schematic diagram of the top fixing hole

Δ Technical Specifications
MODEL: BT14
Dimension: 150×160×240mm
Hopper capacity: 300g
Material Consumption: 15g/min
Weight: 3.6kg
Input: 100-240V, 50/60Hz
Working Power: 250W
Working Temperature: -10 ~ 50
Casing: Anti-flame ABS
Fall Length: 3-4m(HC8200 LARGE) 2-3m(HC8200 MEDIUM)
Interface: 3-pin DMX IN/OUT, Neutrik PowerCON IN/OUT

Δ Operation Panel
1. LED display area

READY: Flash means machine is preparing, LED keeps on means ready to work
DMX: Flash means DMX signal is connected, light OFF means there is no DMX signal
FAULT: Light ON when error occurs
HEAT: Light ON when system is heating up
2. Control button area

MENU Press to switch through menu, press and hold for 3s enter advanced menu
-: Parameters down
+: Parameters up
ENTER: Confirm and save parameters.
3. Bottom Indication Light
Off: Preheating not activated or machine is firing
Quick Flashing: Preheating
Long on: Preheated
Slow Flashing: Error warning
The indication light can be turned off in menu.
3. RFID area

Composite Ti with RFID card, swiping cards used to identify parameters and types of granules.
The RFID card is disposable, one card can only use one time.

Δ Interface
1. Main Interface

First line: Display DMX address is “1”
Second line: Display the present inner core temperature and the temperature progress bar;
displays remaining time is 7 minutes and 24 seconds.

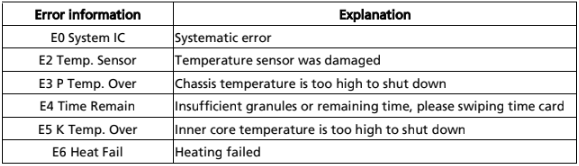

2. Error information

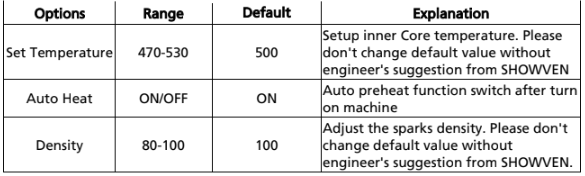

3. Setting Menu
Press “MENU” to enter the Setting interface, press the “MENU” button to enter different
options until you return to the main interface

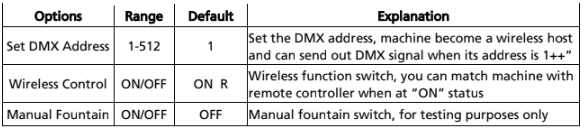

4. Advanced Menu
Press and hold “MENU” for 3s to enter the advanced setup interface, press MENU key to enter
different options, wait 3 seconds to return to the main interface

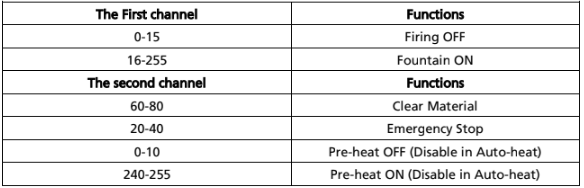

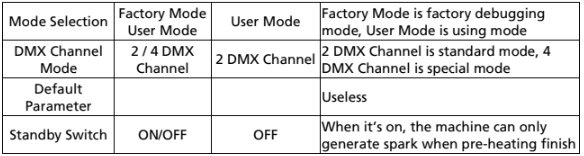

DMX mode

Δ Operation Guide
1. Check output nozzle of SPARKULAR® miniFALL
Check carefully the output nozzle of each machine, make sure the output nozzle is in good
shape and there is no powder aggregate.
2. Fill SPARKULAR® miniFALL
a) Open powder bags and fill the feeding hopper. Hopper capacity of SPARKULAR® miniFALL
is 300g.
b) Make sure the powder is originally from SHOWVEN, other types of powder may block even
damage the machine.
c) Choose correct consumable according to the hanging height and safety distance.
d) Only use the consumable type suggested below.
e) Make sure the lid of hopper is locked tight after filling.

3. Install SPARKULAR® miniFALL
a) Clamp installation direction as below.

b) SPARKULAR miniFALL can only be hanging vertically.
c) Make sure the machine is securely hanging on truss to avoid falling. An extra safety rope is
required for extra safety.
4. Connect Power / DMX cable
a) Connect a power cable to the POWER IN socket of SPARKULAR® miniFALL. Connect the
other end of power cable to the power source. Make sure power supply in consistent with
the rated voltage of the equipment, and the socket must well grounded.
b) If connect machine in sequence, please connect a power link cable to the POWER OUT of
previous machine, connect the other end of the power link cable to POWER IN of the next
machine.
c) The SPARKULAR® miniFALL power supply cable maximum allowed cascade is 12 units. Do
not connect exceed units to a single electrical circuit.
d) Power ON all SPARKULAR® miniFALL.
e) Assign DMX address for each unit of SPARKULAR® miniFALL. If use SHOWVEN host
controller or FXcommander to control the machine please allocate a unique DMX address
for each unit of machine.
If use remote controller to control SPARKULAR® miniFALL wirelessly, please set machine to
wireless ON status and match machine with remote controller. For DMX cable control please
execute below operations (f to h).
f) Connect a DMX cable to the DMX IN socket of first unit of SPARKULAR® miniFALL, connect
the male connector end of DMX cable to your DMX controller (FXcommander, HOST
CONTROLLER, light console etc).
g) Connect a DMX cable to the DMX OUT of previous machine, and the other end of to the
DMX IN of next machine. Connect all devices in series in this way.
h) Suggest to plug in a DMX terminator into the DMX OUT in last unit of machine to improve
signal reliability. Signal amplifier is required for long distance (>200m) DMX signal
transmission.

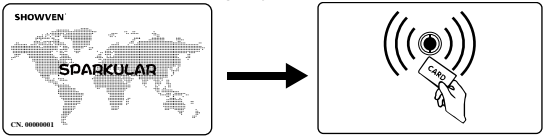

5. Activate SPARKULAR®miniFALL by swipe RFID card
a) Swipe an RFID card. Read the card as show below. SPARKULAR® miniFALL shows time
remain if read successfully.
b) SPARKULAR® miniFALL will report E4 when remaining time is less than 8 minutes.
c) Please note each RFID card come with 50g package HC8200 can increase single machine
4min working time, the maximum recharge time for SPARKULAR® miniFALL is 30min, when
time remain reached 30min, it can’t recharge anymore RFID card.

6. Programming and Firing
a) Programming SPARKULAR® miniFALL, set the firing height, firing sequences etc.
b) Heating up machine, it takes around 5min. it various according to the voltage and
environment temperature.
c) Make sure the prescribed safety zone is clear.
d) Suggest to clear material before firing.
e) Firing. In order to prevent overheat in the heating chamber and protect machine, the
maximum continuous firing time for SPARKULAR® miniFALL is 30s.
f) The operator should always have a clear view of the device, so that he/she can stop the
show immediately when there is danger.
g) Clear material for SPARKULAR® miniFALL for 5s after show, clear material will remove the
remaining particles from heating chamber.
7. Turn off and Clean up
a) Power off SPARKULAR® miniFALL, allow SPARKULAR® miniFALL to cool down.
b) Disconnect all POWER and DMX cables. Remove the machine from truss carefully.
c) Empty the remaining HC8200 in hopper, and store the remaining HC8200 in a dry sealed
bottle for next time use. Never touch the output nozzle of SPARKULAR® miniFALL when
empty the hopper. DANGER OF GET BURNT!
d) Clean the surroundings to remove powder residues.

Δ Wireless Control Information
1. Wireless remote control mode

When use wireless remote control, please unplug DMX cable connection on machine, set
Wireless Control at ON status, match the remote controller with machine.
2. Remote controller
A: OFF / SET, All machine OFF, SET means match machine with remote
controller.
B: ON.
C: ON.
D: Clear Material.

NOTE:
a) In order to prevent the same area from being serialized by other same remote controllers,
the communication code can be set manually. This remote controller has 5 kinds of
communication codes related to 5 different colors: red, green, blue, yellow, white. Press and
hold the key A for 3s, LED flashes, release the key, and then press the A key to switch the
flashing light color to adjust the communication code, and press the B key to confirm and
save. After modifying the communication code, perform the code matching operation again.
b) When the indicator light becomes weak on the remote controller, please replace the
battery.
c) When the machine is occasionally not working, may be caused by interference, please press
the start button again.
d) Wireless control is easily influenced by interference, suggests to stay as close to machine as
possible when use remote controller, and machines cannot use metal shielding
3. Wireless host SPARKULAR®miniFALL mode (requires communication cables)
a) In occasion of strong interference, using the wireless host can avoid interference, ensure
stable control.
b) Set the first unit of SPARKULAR® miniFALL DMX address into “1++”, this machine address is
“1”, but it can also output DMX signal and turns into wireless host SPARKULAR® miniFALL.
c) Use communication cables to connect all SPARKULAR® miniFALLs, the host SPARKULAR®
miniFALL will receive the signal from remote controller and transfer to all other
SPARKULAR® miniFALL via communication cable to realize stable signal transmission.

Δ Maintenance
a) Empty the feeding hopper before shipment of machine.
b) Empty the feeding hopper if long time not use, for high humidity environment we suggest
to empty feeding hopper after show.
c) Clear material both before and after the show.
d) Recommended to wash or replace the air intake filter every two months.

Δ Warranty Instructions
\ Sincere thanks for your choosing our products, you will receive quality service from us
\ The product warranty period is one year. If there are any quality problems within 7 days after
shipping out from our factory, we can exchange a brand new same model machine for you
\ We will offer free of charge maintenance service for machines which with hardware
malfunction (except for the instrument damage caused by human factors) in warranty period.
Please don't repair machine without factory permission
Below situations NOT included in warranty service:
\ Damage caused by use other type of consumable which is not originally from SHOWVEN®.
\ Damage caused by improper transportation, usage, management, and maintenance, or
damage caused by human factors;
\ Disassemble, modify or repair products without permission;
\ Damage caused by external reasons (lightning strike, power supply etc.)
\ Damage caused by improper installation or use;

For product damage not included in warranty range, we can provide paid service.
Invoice is necessary when applying for maintenance service from SHOWVEN®
