The Showven Sparkular Mini system produces a fantastic, non-hazardous gerb effect that looks exactly like traditional fireworks or jet burst pyrotechnics.

Features and advantages

• Safe: non pyro, no gunpowder; multi built-in safety sensors
• Integrated wireless technology, unexposed, anti-collision;
• One button start, easy operation;
• Tilt protection, safer for use;
• Wireless remote control and DMX double control;
• Superior and compact design;
• Light weighted and portable, easy to carry.
• *For safety use, please don’t touch sparks with hands or other flammable objects.

The effect is simply created using a Showven Sparkular Mini machine and a special granulated alloy, removing the need for gunpowder or traditional pyrotechnic techniques. The duration and height of the effect can be varied throughout a display, with sequences of 'dancing' sparks created to entertain audiences.

The Showven Sparkular Mini system operates at such cool temperatures; the sparks themselves are not flammable. The machines are also very smart and have multiple built-in safety protocols. You can control the start and stop of the effect at anytime, and the system is keycard locked so the machine cannot be abused in any manner. You now can control the time, height, volume this has never been achieved from a machine ever. This is beginning of a new technology to the world of stage of effects.


• No hazardous materials to transport or store on site.
• Much safer than using traditional pyrotechnics.
• No large safety or exclusion zones are required as the units produce cold fallout which is perfectly safe (the audience can pass their hands through the effect without any concern).
• Can be used in locations where fireworks and pyrotechnics are not permitted.
• Up to 15 minutes of effect can be produced from just one powder refill (equivalent to 1800 x 0.5 second pyrotechnic gerbs). This makes the system far more cost-effective.
• Low smoke output.
• Rigging time and crew requirement is dramatically reduced when compared to traditional pyrotechnics, again, making them far more cost-effective.
• Variable duration and height of the effects is achievable.
• The system is ideal for permanent installations or multiple date productions as they remove the need for re-loading.
• Remote control via DMX or the available dedicated Host controllers

Sparkular Mini Specifications

• Model：BT06 / BT07
• Dimension：168×180×228mm
• Net Weight：4.5kg
• Work power：400W
• Work Temp: -10-50℃
• Spark Direction: Vertical UP
• Effects Height：Fixed height at around 2-3m
• Casing Material: Anti-flaming ABS
• Input: 200-240VAC(BT06)/100-120VAC(BT07)
• Control: Wireless remote, DMX
• Interface: DMX IN/OUT, POWER IN/OUT
• Packing Size: 260×235×295mm (single unit)
• Packing Size: 545×495×320mm (4 units)
• Packing Size: 705×665×480mm (6 units)

SPECIAL FEATURES - MINI Sparkular Cold Pyro Machine

• Indoor  /  Outdoor usage
• Very low smoke, dissipates fast
• Sparkular effect from granules
• No smell from pyro
• Up to 3-4 minutes of shoot time per granules
• Easy set up multiple locations
• Height 2-2.5 meters
• Simple integration into musical synchronous shows
• Run up to 54 units in series VIA DMX cables

_______________________________________________________________________________________

Showven Technologies Co., Ltd.

Thanks for choosing SPARKULAR® mini, we wish it will sparks up your show.
Please read the following manual carefully before operating this product.

Δ Safety Instructions
\ Unauthorized repair are prohibited, it may cause serious incident.
\ Keep SPARKULAR® mini dry and do NOT use in rain or snow.
\ Make sure lid of feeding hopper are well covered when use SPARKULAR® mini.
\ Accidentally burning of consumable can only use sands to extinguish.
\ Consumable should keep away from moisture and stored in a dry sealed environment.
\ Check whether there is consumable aggregate in the output nozzle both before and after
each show, if any, please clean it up, or it will affect the firing effect or even damage
SPARKULAR® mini.
\ There will be some sparks drop to ground when use HC8200 LARGE, suggest to use HC8200
MEDIUM or SMALL for indoor events.
\ The SPARKULAR® mini power supply cable maximum allowed cascade is 6pcs (BT06) / 3pcs
(BT07), exceed connecting may result in damage or even cause fire.
\ For better heat dissipation, block the air intake and air outlet is prohibited.
\ Cover the output nozzle of SPARKULAR® mini are forbidden, inspect the machine before
each show, making sure no objects or material will block the output nozzle.
\ Never touch the nozzle of SPARKULAR®, danger of getting burnt
\ Never touch the sparks which shooting out from the nozzle

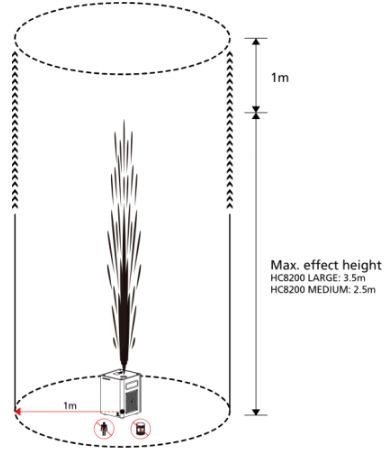

Safety Distance
\ Keep audience and flammable material at a minimum distance of 1m from SPARKULAR®
mini.
\ Make sure sparks shoot out from SPARKULAR® mini can NOT touch any objects. And keep a
clearance with minimum 1m from the setting maximum effect height.
\ In windy environment, increase the safety distance according to the wind direction and speed.
\ The safety zone area changes accordingly when machine installed in tilt position. Please
increase the safety distance in the direction which machine tilt.
\ Sparks and consumables from the machine can lead to serious eye injury. Always wear safety
goggles when enter the safety zone.

Δ Description
SPARKULAR® mini is an affordable sparks solution based on SPARKULAR® platform, it is with
fixed sparks effects at around 2-3m. Equipped with wireless remote and DMX double control
ensure the versatile use for wedding, party, clubs, cruise ships etc. venues and stages.

Δ Technical Specifications
\ MODEL: BT06/BT07
\ DIMENSION: 168×180×228mm
\ WEIGHT: 4.5kg
\ VOLTAGE: 220V(BT06)/110V(BT07), 50/60Hz
\ WORK POWER: 380W
\ EFFECT HEIGHT: 2-2.5m (HC8200 MEDIUM), 3-3.5m (HC8200 LARGE)
\ INTERFACE: 3-pin XLR, POWER IN/OUT
\ CONTROL: DMX 2 channels, Wireless Remote

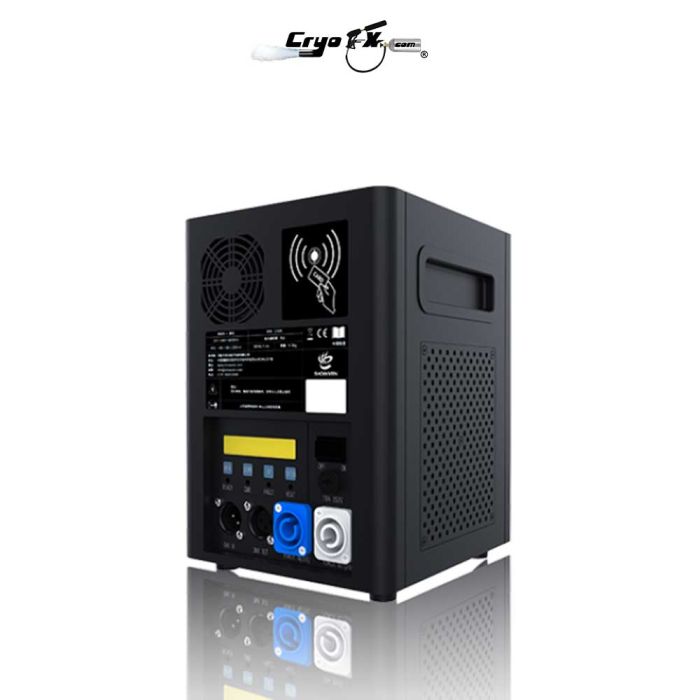

Δ Structure of SPRKULAR® mini

1. Output Nozzle
2. Feeding Hopper Lid
3. Cooling Fan
4. LCD Screen
5. Power Switch
6. Fuse
7. DMX OUT
8. DMX IN
9. POWER IN
10.POWER OUT

Diagram of Bottom Panel

Δ Operation Panel
1. LED display area

READY: After turn on machine, it will automatically preheat around 5 minutes, when the
"READY" green light turns from flashing into long on, indicates that the machine is
ready to work.
DMX: Flashing shows that DMX signal is connected, otherwise is without signal
FAULT: When any malfunction, the indicate light turn on
HEAT: When the machine is heating, signal light turn on
2. Control button area

MENU Short press to switch interface, press and hold for 3 seconds can switch to the
advanced setup interface
-: Parameters down
+: Parameters up
ENTER Confirm and save parameters.
3. RFID area

Composite Ti with RFID card, swiping cards used to identify parameters and types of granules.
The RFID card is disposable, one card can only use one time.

Δ Interface
1. Main Interface

First line: Display DMX address is “1”
Second line: Display the present inner core temperature and the temperature progress bar;
isplays remaining time is 7 minutes and 24 seconds

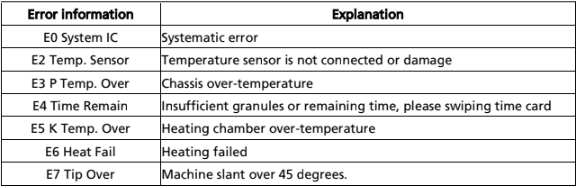

2. Error Information

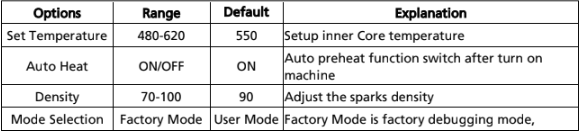

3. Setting Menu
Press “MENU” to enter the Setting interface, press the “MENU” button to enter different
options until you return to the main interface

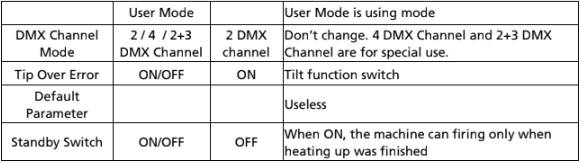

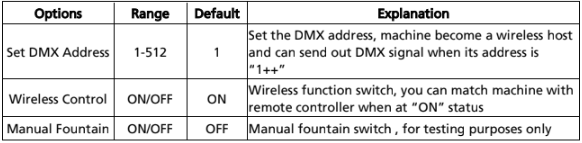

4. Advanced Menu
Press and hold “MENU” for 3 seconds to enter the advanced setup interface, press MENU key
to enter different options, wait 3 seconds to return to the main interface.

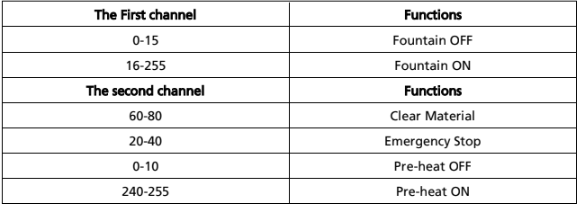

5. DMX Mode
When using the DMX controller, the system takes 2 channels

If use together with HOST CONTROLLER ZK6200/6300, each unit of SPARKULAR® must use
different DMX address, otherwise it may leads to signal interference.

Δ Operation Guide
1. Install SPARKULAR® mini

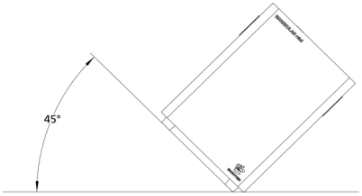

a) Horizontal installation is preferred for SPARKULAR® mini. If need to installed SPARKULAR®
mini in angles, please turn the Tip over to OFF status first, maximum firing angle is 45 ° and
can only be angled to the right side as below picture.
b) Make sure the machine is securely installed to avoid tipping.
c) The safety zone area shifts accordingly when machine installed in tilt position. Please
increase the safety distance in the direction which machine tilt.
d) Check carefully the output nozzle of each machine, make sure the output nozzle is in good
shape and there is no powder aggregate.

2. Fill SPARKULAR® mini
a) Open powder bags and fill the feeding hopper. Hopper capacity of SPARKULAR® mini is
100g.
b) Choose correct consumable according to the application scenario. HC8200 LARGE will have
some sparks drop on ground, suggest HC8200 MEDIUM or SMALL for indoor use.
c) Maximum effect height for HC8200 LARGE is 3.5m, HC8200 MEDIUM is 2.5m.
d) Make sure the lid of hopper is locked tight after filling.

3. Connect Power / DMX cable
a) Connect a power cable to the POWER IN socket of SPARKULAR® mini. Connect the other
end of power cable to the power source. Make sure power supply in consistent with the
rated voltage of the equipment, and the socket must well grounded.
b) If connect machine in sequence, please connect a power link cable to the POWER OUT of
previous machine, connect the other end of the power link cable to POWER IN of the next
machine.
c) The SPARKULAR® mini power supply cable maximum allowed cascade is 6 units (220V
version) / 3pcs (110V version). Do not connect exceed units to a single electrical circuit.
d) Power ON all SPARKULAR® mini.
e) Assign DMX address for each unit of SPARKULAR® mini. If use SHOWVEN host controller or
FXcommander to control the machine please allocate a unique DMX address for each unit
of machine.
If use remote controller to control SPARKULAR® mini wirelessly, please set machine to
wireless ON status and match machine with remote controller. For DMX cable control please
execute below operations (f to h).
f) Connect a DMX cable to the DMX IN socket of first unit of SPARKULAR® mini, connect the
male connector end of DMX cable to your DMX controller (FXcommander, HOST
CONTROLLER, light console etc).
g) Connect a DMX cable to the DMX OUT of previous machine, and the other end of to the
DMX IN of next machine. Connect all devices in series in this way.
a) Suggest to plug in a DMX terminator into the DMX OUT in last unit of machine to improve
signal reliability. Signal amplifier is required for long distance (>200m) DMX signal
transmission.

4. Activate SPARKULAR®mini machine by swipe RFID card
a) Swipe an RFID card. Read the card as show below. SPARKULAR® mini shows time remain if
read successfully.
b) SPARKULAR® mini report E4 when remaining time is less than 8 minutes.
c) Please note each RFID card come with 50g package HC8200 can increase single machine
4min working time, the maximum recharge time for SPARKULAR® mini is 30min, when
time remain reached 30min, it can’t recharge anymore RFID card.

5. Programming and Firing
a) Programming SPARKULAR® mini, set the firing height, firing sequences etc.
a) Heating up machine, it takes around 5min. it varies according to the voltage and
environment temperature.
b) Make sure the prescribed safety zone is clear.
c) Suggest to clear material before firing.
b) Firing. In order to prevent overheat in the heating chamber and protect machine, the
maximum continuous firing time for SPARKULAR® mini is 30s.
c) The operator should always have a clear view of the device, so that he/she can stop the
show immediately when there is danger.
d) Clear material for SPARKULAR® mini for 5s after show, clear material will remove the
remaining particles from heating chamber. For angled installation please elongate clear
material time.

6. Turn off and Clean up
a) Power off SPARKULAR® mini, allow SPARKULAR® mini to cool down.
b) Disconnect all POWER and DMX cables.
c) Empty the remaining HC8200 in hopper, and store the remaining HC8200 in a dry sealed
bottle for next time use. Never touch the output nozzle of SPARKULAR® mini when empty
the hopper. DANGER OF GET BURNT!
d) Operators can use handheld vacuum cleaner to empty the feeding hopper. Do make sure
the machine was cool down when clean it. Do NOT use high-power vacuum cleaners to
avoid hot consumables being sucked into the vacuum cleaner from the heating chamber
and cause fire.
e) Clean the surroundings to remove powder residues.

Δ Wireless Control Information
1. Wireless remote control mode:

When use wireless remote control, please unplug DMX cable connection on machine, set
Wireless Control at ON status, match the remote controller with machine, pull out the antenna
on remote controller.

NOTE:
a) When the indicator light becomes weak on the remote controller, please replace the
battery. The battery type is 12V23A.
b) When the machine is occasionally not working, may be caused by interference, please press
the start button again.
c) Wireless control is easily influenced by interference, suggests to stay as close to machine as
possible when use remote controller, and machines cannot use metal shielding
3. Wireless host SPARKULAR®mini mode (requires communication cables)
a) In occasion of strong interference, using the wireless host can avoid interference, ensure
stable control.
b) Set the first unit of SPARKULAR® mini DMX address into “1++”, this machine address is “1”,
but it can also output DMX signal and turns into wireless host SPARKULAR® mini.
c) Use communication cables to connect all SPARKULAR® minis, the host SPARKULAR® mini
will receive the signal from remote controller and transfer to all other SPARKULAR® mini
via communication cable to realize stable signal transmission.

Δ Maintenance
a) Empty the feeding hopper before shipment of machine.
b) Empty the feeding hopper if long time not use, for high humidity environment we suggest
to empty feeding hopper after show.
c) Clear material both before and after the show for SPARKULAR® mini.
d) Recommended to wash or replace the air intake filter every two months.

Δ Warranty Instructions
\ Sincere thanks for your choosing our products, you will receive quality service from us
\ The product warranty period is one year. If there are any quality problems within 7 days after
shipping out from our factory, we can exchange a brand new same model machine for you.
\ We will offer free of charge maintenance service for machines which with hardware
malfunction (except for the instrument damage caused by human factors) in warranty period.
Please don't repair machine without factory permission
Below situations NOT included in warranty service:
\ Damage caused by use other type of consumable which is not originally from SHOWVEN®.
\ Damage caused by improper transportation, usage, management, and maintenance, or
damage caused by human factors;
\ Disassemble, modify or repair products without permission;
\ Damage caused by external reasons (lightning strike, power supply etc.)
\ Damage caused by improper installation or use;

For product damage not included in warranty range, we can provide paid service.
Invoice is necessary when applying for maintenance service from SHOWVEN®.
