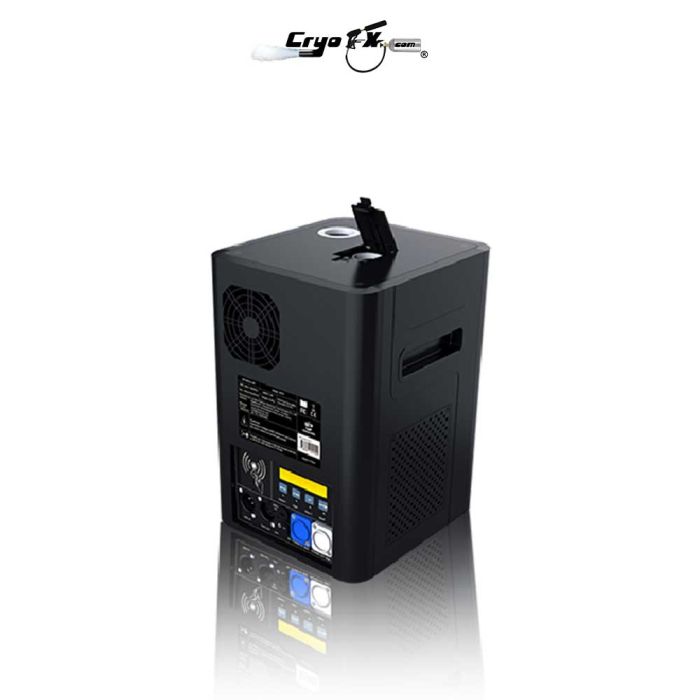

Showven Sparkular Cold Spark Machine

Showven Sparkular Machine - Indoor Firework Fountain Effects System

Showven Sparkular indoor pyrotechnics Spark safe indoor display sparkler fountain.

The Showven Sparkular FX system produces a fantastic, non-hazardous gerb effect that looks exactly like traditional fireworks or jet burst pyrotechnics.

Features and advantages：

• Original innovation introduced by SHOWVEN
• Patented non-pyro technology
• Safe, no gunpowder, no smoke and pyro smell
• Adjustable sparks effects from 1.5 to 5m
• Up to 10-20min effects time after fill up
• DMX controllable, can be started and stopped at any time
• Easy setup and teardown

The effect is simply created using a Showven Sparkular machine and a special granulated alloy, removing the need for gunpowder or traditional pyrotechnic techniques. The duration and height of the effect can be varied throughout a display, with sequences of 'dancing' sparks created to entertain audiences.

The Showven Sparkular system operates at such cool temperatures; the sparks themselves are not flammable. The machines are also very smart and have multiple built-in safety protocols. You can control the start and stop of the effect at anytime, and the system is keycard locked so the machine cannot be abused in any manner. You now can control the time, height, volume this has never been achieved from a machine ever. This is beginning of a new technology to the world of stage of effects.


• No hazardous materials to transport or store on site.
• Much safer than using traditional pyrotechnics.
• No large safety or exclusion zones are required as the units produce cold fallout which is perfectly safe (the audience can pass their hands through the effect without any concern).
• Can be used in locations where fireworks and pyrotechnics are not permitted.
• Up to 15 minutes of effect can be produced from just one powder refill (equivalent to 1800 x 0.5 second pyrotechnic gerbs). This makes the system far more cost-effective.
• Low smoke output.
• Rigging time and crew requirement is dramatically reduced when compared to traditional pyrotechnics, again, making them far more cost-effective.
• Variable duration and height of the effects is achievable.
• The system is ideal for permanent installations or multiple date productions as they remove the need for re-loading.
• Remote control via DMX or the available dedicated Host controllers

SPECIFICATIONS - Showven Sparkular Cold Spark Foutain Machine

• Model: BT01 / BT02
• Dimension: 200×218×305mmNet Weight: 8.5kg
• Work power: 500W
• Work Temp: -10-50℃
• Effects Height: 1.5-5m adjustable
• Interface: DMX IN/OUT, POWER IN/OUT
• Casing Material: Anti-flaming ABS
• Voltage: 220V (BT01) / 110V (BT02), 50/60Hz
• Packing Size: Single unit: 274 x 313 x 373 mm
• Packing Size: Two units: 575 x 345 x 395 mm
• Packing Sieze: Flightcase (6 units): 830 x 670 x 720 mm

SPECIAL FEATURES - Showven Sparkular Machine

• Indoor  /  Outdoor usage
• Very low smoke, dissipates fast
• Sparkular effect from granules
• No smell from pyro
• Up to 10 minutes of shoot time per granules
• Easy set up multiple locations
• Height - adjustable from 1 - 5 meters
• Simple integration into musical synchronous shows
• Run up to 54 units in series VIA DMX cables

Showven Sparkular Cold Spark Fountain Machine

Looking for a reliable cold sparkler machine for sale? Introducing the Showven Sparkular Cold Spark Fountain Machine to add that touch of magic and excitement to your event! The Showven Sparkular Cold Spark Fountain Machine generates a remarkable, safe gerb effect similar to traditional firework or jet burst pyrotechnics via a composite granule of titanium.

This firework impact is effortlessly achieved through the Sparkular machine and a unique granulated alloy, eliminating the need to use gunpowder or conventional pyrotechnic methods. This feature makes the cold spark fountain machine highly suitable for different kinds of events like concerts and weddings. The display's duration and height can be adjusted during the event, allowing for dynamic sequences of 'dancing' sparks to engage and entertain your audience.

Replacing Conventional Pyrotechnics with Innovative Cold Spark Fountain Machine

With growing safety concerns over the use of pyrotechnics, particularly indoors, there has been an increasing emphasis on using safer alternatives. Conventional pyrotechnic techniques present various challenges, whereby the main concern is the safety of the audience present.

Many venues have even gone as far as restricting their use, and in some cases, some particular products have even been banned. If you have faced a similar situation, the Showven Sparkular cold spark machine for sale at CryoFX is here to the rescue. Its signature purpose-built non-pyrotechnic technology has taken the world of special effects by storm. The state-of-the-art machine produces a huge plume of vibrant sparks that are safe and can easily be used even where the safety distance is small.

Versatile Cold Sparkler Fountain Machine- Features and Benefits

The innovative cold fountain sparklers revolutionize how we experience pyrotechnics, offering a versatile and mesmeric yet highly safe cold sparkler effect that can add charm and excitement to any occasion.

Cold spark sparkler fountains use granulated titanium, combined with an electric charge, to produce a spectacular display of sparks that are cool to the touch. The electric charge ignites the particles, resulting in a non-pyrotechnic effect that is safe for indoor and outdoor use.

Innovative Technology

The Showven Sparkular Cold Spark Fountain Machine offers us the best cold spark fountain technology. It employs advanced engineering to create a visually captivating display from granules that is safe, controllable, and consistent. The machine ensures a stunning shower of cold sparks, offering an impressive and memorable spectacle for any event.

Safe and Environmentally Friendly

Safety is a key feature! Unlike traditional pyrotechnics, the indoor cold spark fountain effect produced is cool to the touch, thereby minimizing any risk of burns or fire hazards. This feature makes it ideal for indoor events, ensuring a worry-free experience for event planners and attendees alike.

Additionally, the cold sparkler effect is environmentally friendly, emitting no harmful substances or toxic fumes. There is also no smell from pyro, and there is minimal smoke emitted that dissipates fast. As an organizer or event planner, you have the freedom to integrate this stunning visual element into your next big presentation without compromising safety or assuming the risk of fire hazards.

Customizable and Versatile

The indoor cold spark machine is a favorite among event planners mainly due to its versatility. With an adjustable height of one to five meters, duration of up to ten minutes, and control over the spark intensity, the cold spark fountain effect can be modified to suit various event themes and atmospheres. Whether a grand wedding reception, a lively concert, or an elegant corporate gala, the machine can be customized to enhance the ambiance and create a magical atmosphere.

Easy to Use and Set Up

The cold sparkler machine is designed for user-friendliness. Setting up the machine is pretty straightforward, and it can be easily integrated into any event production, even musical synchronous extravaganzas. Its in-built controls and simple operation make it accessible to both professionals and novices.

Cost-effective

For event planners or organizers looking for innovative ways to enhance the quality of their events, investing in the Showven Sparkular Cold Spark Fountain Machine will be a cost-effective choice in the long run. With no recurring expenses for consumables or special permits that are usually associated with the use of traditional pyrotechnics, the cold sparkler fountain machine offers a budget-friendly solution for event planners and organizers.

Buy the Showven Sparkular Cold Spark Fountain Machine from CryoFX

The Showven Sparkular Cold Spark Fountain Machine is a must-have for event planners and individuals seeking to light up their events with a safe, visually stunning, and customizable cold sparkler fountain effect. The machine’s advanced technology, safety features, superior performance, and versatility make it a great choice for adding that extra spark to any occasion.

CryoFX is your trusted seller for the Showven Sparkular Cold Spark Fountain Machine. We offer top-quality, reliable cold fountain sparkler machines that guarantee a beautiful display of cold sparks to light up your event and leave a lasting impression on your audience. Place your order for the cold sparkler fountain machine today. Contact us in case of queries!

_____________________________________________________________________________________________

Showven Technologies Co., Ltd.

Thanks for choosing SPARKULAR®, we wish it will sparks up your show.
Please read the following manual carefully before operating this product.

Δ Safety Instructions
\ Unauthorized repair are prohibited, it may cause serious incident.
\ Keep SPARKULAR® dry and do NOT use in rain or snow.
\ Make sure lid of feeding hopper are well covered when use SPARKULAR®
\ Accidentally burning of consumable can only use sands to extinguish.
\ Consumable should keep away from moisture and stored in a dry sealed environment.
\ Check whether there is consumable aggregate in the output nozzle both before and after
each show, if any, please clean it up, or it will affect the firing effect, damage machine, even
cause serious incident.
\ There will be some sparks drop to ground, make sure there is no flammable objects such as
carpet on the ground within the safety radius around machine.
\ Suggest to use HC8200 MEDIUM or SMALL for indoor events.
\ The SPARKULAR® power supply cable maximum allowed cascade of 6pcs (BT01) / 3pcs (BT02),
exceed connecting may result in damage or even cause fire.
\ For better heat dissipation, block the air intake and air outlet is prohibited.
\ Cover the output nozzle of SPARKULAR®is forbidden, inspect the machine before each show,
making sure no objects or material will block the output nozzle.
\ Never touch the nozzle of SPARKULAR®, danger of getting burnt.
\ Never touch the sparks which shooting out from the nozzle.

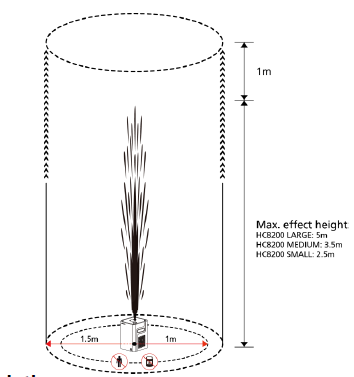

Safety Distance
\ Keep audience and flammable material at a minimum distance of 1m (when use HC8200
SMALL and MEDIUM) or 1.5m (when use HC8200 LARGE) from SPARKULAR® .
\ Make sure sparks shoot out from SPARKULAR® can NOT touch any objects. And keep a
clearance with minimum 1m from the setting maximum effect height.
\ In windy environment, increase the safety distance according to the wind direction and speed.
\ The safety zone area changes accordingly when machine installed in tilt position. Please
increase the safety distance in the direction which machine tilt.
\ Sparks and consumables from the machine can lead to serious eye injury. Always wear safety
goggles when enter the safety zone.

Δ Description
SPARKULAR® is original innovation products introduced by SHOWVEN® , it is the first spark
fountain machine in special effects industry. SPARKULAR®is designed for highly demanding
professional market with adjustable sparks height from 1.5 to 5m.

Δ Technical Specifications
\ MODEL: BT01/BT02
\ DIMENSION: 200×218×305mm
\ WEIGHT: 8.5kg
\ VOLTAGE: 220V(BT01)/110V(BT02), 50/60Hz
\ WORK POWER: 500W
\ EFFECT HEIGHT: 1.5-5m adjustable
\ INTERFACE: 3-pin XLR, POWER IN/OUT
\ CONTROL: DMX 2 channels

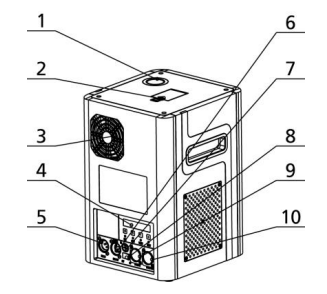

Δ Structure of SPARKULAR®

1. Output Nozzle
2. Feeding Hopper Lid
3. Cooling Fan
4. LCD Screen
5. DMX IN
6. DMX OUT
7. Fuse
8. Power Switch
9. Power IN
10.Power OUT

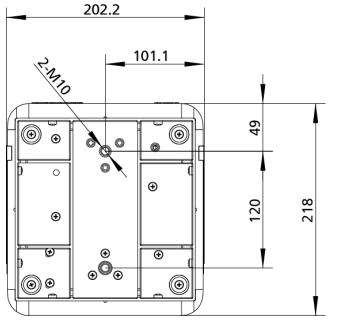

Diagram of Bottom Panel

Δ Operation Panel
1. LED display area:

READY: Flash means machine is preparing, LED keeps on means ready to work
DMX: Flash means DMX signal is connected, light OFF means there is no DMX signal
FAULT: Light ON when error occurs
HEAT: Light ON when system is heating up
2. Control button area:

MENU: Press to switch through menu, press and hold for 3s enter advanced menu
DOWN: Parameter down
UP: Parameter up
ENTER: Confirm and save parameters

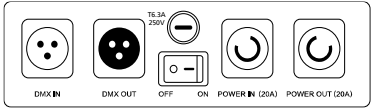

3. Interface and Plugging Area

POWER IN: Power input
POWER OUT: Power output
DMX IN: DMX Signal Input
DMX OUT: DMX Signal Output
4. RFID area:

RFID card come with consumable HC8200 bags, swiping card to identify parameters and types
of granules. The RFID card is disposable, one card can only use one time.

Δ Interface
1. Main Interface:

First line: Display DMX address is “1”
Second line: Display the heating chamber temperature and the temperature progress bar;

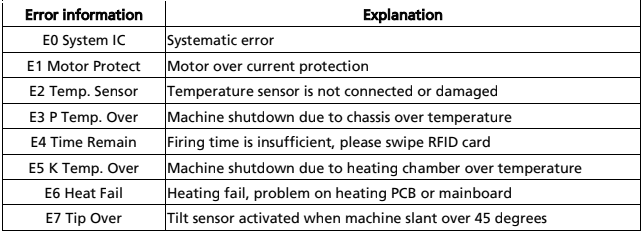

2. Error information

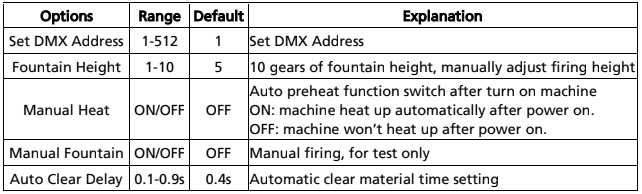

3. Menu
Press “MENU” switch through setup menu.

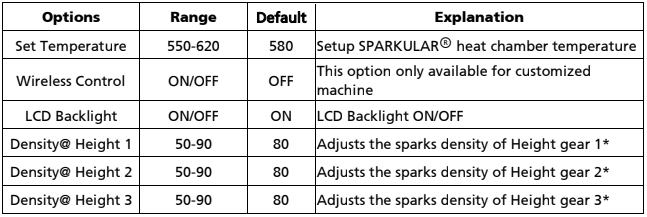

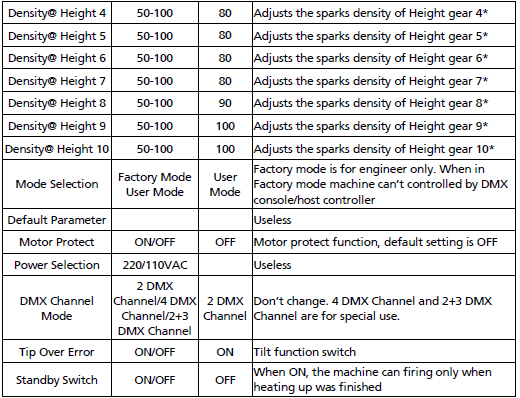

4. Advanced Menu

*For better performance of SPARKULAR®, please don’t change the default value without
permission from SHOWVEN®

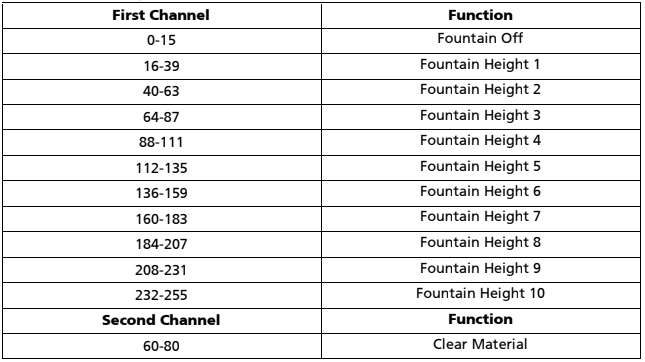

5. DMX Channel Mode:
SPARKULAR® occupy 2 DMX channel.

Δ Operation Guide
1. Install SPARKULAR®

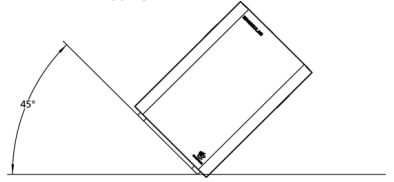

a) Horizontal installation is preferred for SPARKULAR®. If need to installed SPARKULAR®
inangles, please turn the Tip over to OFF status first, maximum firing angle is 45 ° and can
only be angled to the right side as below picture.
b) Make sure the machine is securely installed to avoid tipping.
c) The safety zone area shifts accordingly when machine installed in tilt position. Please
increase the safety distance in the direction which machine tilt.
d) Check carefully the output nozzle of each machine, make sure the output nozzle is in good
shape and there is no powder aggregate.

2. Fill SPARKULAR®
a) Open powder bags and fill the feeding hopper. Hopper capacity of SPARKULAR® is 200g.
b) Choose correct consumable according to the application scenario. SPARKULAR® can only
use HC8200 LARGE, MEDIUM and SMALL.
c) Please be noted that there may sparks or remains fall to the ground. Make sure no
flammable material on ground in the safety zone.
d) Maximum effect height: HC8200 LARGE is 5m, HC8200 MEDIUM is 3.5m, HC8200 SMALL is
2.5m.
e) Make sure the lid of hopper is locked tight after filling.
3. Connect Power / DMX cable
a) Connect a power cable to the POWER IN socket of SPARKULAR®. Connect the other end of
power cable to the power source. Make sure power supply in consistent with the rated
voltage of the equipment, and the socket must well grounded.
b) If connect machine in sequence, please connect a power link cable to the POWER OUT of
previous machine, connect the other end of the power link cable to POWER IN of the next
machine.
c) The SPARKULAR® power supply cable maximum allowed cascade is 6 units (220V version) /
3pcs (110V version). Do not connect exceed units to a single electrical circuit.
d) Power ON all SPARKULAR®.
e) Assign DMX address for each unit of SPARKULAR®. If use SHOWVEN host controller or
FXcommander to control the machine please allocate a unique DMX address for each unit
of machine.
f) Connect a DMX cable to the DMX IN socket of first unit of SPARKULAR®, connect the male
connector end of DMX cable to your DMX controller (FXcommander, HOST CONTROLLER,
light console etc).
g) Connect a DMX cable to the DMX OUT of previous machine, and the other end of to the
DMX IN of next machine. Connect all devices in series in this way.
h) Suggest to plug in a DMX terminator into the DMX OUT in last unit of machine to improve
signal reliability. Signal amplifier is required for long distance (>200m) DMX signal
transmission.
4. Activate SPARKULAR®machine by swipe RFID card
a) Swipe an RFID card. Read the card as show below. SPARKULAR® shows time remain if read
successfully. SPARKULAR® report E4 when remaining time is less than 10 minutes.
b) Please note each RFID card come with 200g package HC8200 can increase single machine
20min working time, the maximum recharge time for SPARKULAR® is 40min, when time
remain reached 40min, it can’t recharge anymore RFID card.

5. Programming and Firing
a) Programming SPARKULAR®, set the firing height, firing sequences etc.
b) Heating up, it takes around 5min. it varies according to the voltage and environment
temperature.
c) Make sure the prescribed safety zone is clear.
d) Suggest to clear material before firing.
e) Firing. In order to prevent overheat in the heating chamber and protect machine, the
maximum continuous firing time for SPARKULAR®
is 30s.
f) The operator should always have a clear view of the device, so that he/she can stop the
show immediately when there is danger.
g) Clear material for SPARKULAR® for 5s after show, clear material will remove the remaining
particles from heating chamber. For angled installation, please elongate clear material time.
6. Turn Off and clean up
a) Power off SPARKULAR®, allow SPARKULAR®to cool down.
b) Disconnect all POWER and DMX cables.
c) Empty the remaining HC8200 in hopper, and store the remaining HC8200 in a dry sealed
bottle for next time use. Never touch the output nozzle of SPARKULAR® when empty the
hopper. DANGER OF GET BURNT!
d) Operators can use handheld vacuum cleaner to empty the feeding hopper. Do make sure
the machine was cool down when clean it. Do NOT use high-power vacuum cleaners to
avoid hot consumables being sucked into the vacuum cleaner from the heating chamber
and cause fire.
e) Clean the surroundings to remove powder residues.

Δ Maintenance
a) Empty the feeding hopper before shipment of machine.
b) Empty the feeding hopper if long time not use, for high humidity environment we suggest
to empty feeding hopper after each show.
c) Clear material both before and after the show.
d) Recommended to wash or replace the air intake filter every two months.

Δ Warranty Instructions
\ Sincere thanks for your choosing our products, you will receive quality service from us
\ The product warranty period is one year. If there are any quality problems within 7 days after
shipping out from our factory, we can exchange a brand new same model machine for you
\ We will offer free of charge maintenance service for machines which with hardware
malfunction (except for the instrument damage caused by human factors) in warranty period.
Please don't repair machine without factory permission
Below situations NOT included in warranty service:
\ Damage caused by use other type of consumable which is not originally from SHOWVEN®.
\ Damage caused by improper transportation, usage, management, and maintenance, or
damage caused by human factors;
\ Disassemble, modify or repair products without permission;
\ Damage caused by external reasons (lightning strike, power supply etc.)
\ Damage caused by improper installation or use;
For product damage not included in warranty range, we can provide paid service.
Invoice is necessary when applying for maintenance service from SHOWVEN®.
