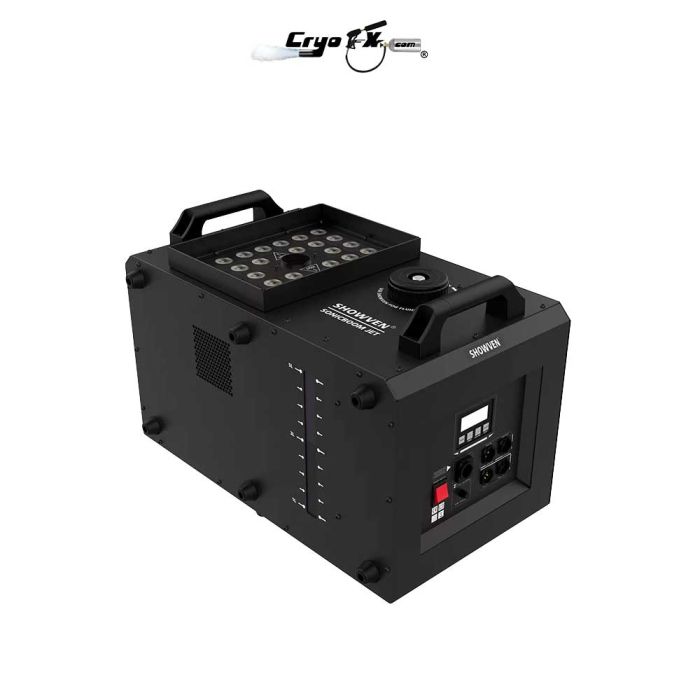

Showven SonicBoom JET Smokejet is one of the most sought after professional series highest output vertical fog machines. Similar to the Chauvet Geyser, this vertical fog machine with lights is a must have when you don't want to, or can't use, co2 jets. Also known as a co2 jet fog machine or vertical smoke machine, you'll be impressed with this "fire fog machine", and yes it can imitate fire with the LED lights on red/orange setting!

Features and advantages for Showven SonicBoom Plus Smokejet

• Larget height and output than ANY machine on the market.
• Dual smoke generation system, dual output
• Two units can combined together to generate max effects
• No need of CO2 tank, safer and easy carry
• No generation of CO2, environmental friendly
• Cost effective consumables
• Excellent heating module design, fast temp. recovery
• Low power mode* design, lower power supply requirement
• Unique constant pressure system, consistent smoke effect
• Pipeline integration technology, easy maintenance, stronger burst
• 30pcs 9W LED,independent smoke column color change
• Easy installation at any angles even place upside down
• *110V version doesn’t have this function.

Specifications for Showven SonicBoom Plus Smokejet:

• Model: SONICBOOM JET
• Dimension: 546 x 331 x 372mm
• Weight: 37kg
• Power:3000W/1800W(220V)
• Power:2400W/1800W(110V)
• Voltage: AC 220V-240V, 50/60Hz, AC 100V-120V 50/60Hz
• Fuse: 15A/250V(220V),18A/250V(110V)
• LED power: 9Wx30PCS
• DMX channels: 1/11/14
• Output height: up to 15m (50ft)
• MAX continuous output duration: 6s
• Smoke output: 150,000cuft/min
• Fluid consumption rate:3min/L
• Tank capacity: 6L
• Consumables:FX-S

Operation - Manual Information (Direct from Showven)

SONICBOOM™ JET SMOKEJET USER MANUAL
Foreword Thanks for choosing SHOWVEN SONICBOOM TM PLUS SMOKEJET.
Please read following manual carefully and completely before operating this product. Operate according to instructions is very important for safety, and can elongate the service life of the machine. Product Description

_____________________________________________________________________________________

SHOWVEN Technologies Co., Ltd.

Thanks for choosing SHOWVEN® SONICBOOM®

JET, we wish it will bring you lots of exciting moments.
Please read the following manual carefully before operating this product.

Δ SAFETY CONSIDERATIONS

\ Unauthorized repair are prohibited, it may cause serious incident.
\ This product is not waterproof design, please keep it dry, please do not use it when
there are fog fluid leakage or wet from rain.
\ Make sure power supply in consistent with the rated voltage of the equipment, and
the socket must well grounded. Unplug and turn off the machine when not use.
\ For adult use only, keep it away from fire, inflammable and explosive articles.
\ Installed in well ventilated area, ensure at least 50cm space around the machine,
cover of the nozzle is forbidden.
\ If the machine fails to work, please stop operation and unplug the machine. Check
fog fluid, fuse, power connection etc. carefully, if can’t solve the problem, please
contact SHOWVEN® or your local SHOWVEN® partner for advice.
\ Suggest use SHOWVEN® original FX-S / FX-M fog fluid, other fluid may lead to clog or
malfunction. Please do not adding any other material such as pigment, water etc. to
the fuel tank.
\ If need to install SONICBOOM® JET in invert direction, please place the machine on
it’s side, then swap the top and bottom fluid tank lid. Check liquid level, make sure
the fog fluid won’t leak from tank port when turn machine to sideway.
\ In case of eye contact of fog fluid, please wash it with clean water. If fluid is
swallowed immediately look for medical advice.

Δ Description
SONICBOOM® JET is a revolution CO2 jet simulator with stronger burst and massive
instant fog output up to 15m. SONICBOOM® JET simulate traditional CO2 jet to the
greatest extent through our patented supercharging technology, which ensure much
faster burst and higher effect than existing smoke jet product on market.

Δ Technical Specifications
\ MODEL: SONICBOOM® JET
\ DIMENSION: 546×331×372mm
\ WEIGHT: 37kg
\ VOLTAGE: AC220-240V / AC100-120V,50/60Hz
\ FUSE: 15A/250V (220V), 20A/250V (110V)
\ POWER: 3000W/1800W(220V),2400W/1800W(110V)
\ LED POWER: 9W×30pcs
\ MAX OUTPUT DISTANCE: 15m
\ MAX CONTINUOUS OUTPUT DURATION: 6s
\ HEATING UP TIME: 13min for 220V standard power mode (low power mode and 110V
version takes longer time to heat up)
\ OUTPUT: 150000cuft/min
\ FLUID CONSUMPTION RATE: 1.1min/L
\ BUILT-IN TANK CAPACITY: 6L
\ DMX CHANNEL: 1/11/14
\ CONSUMABLES: FX-S, FX-M

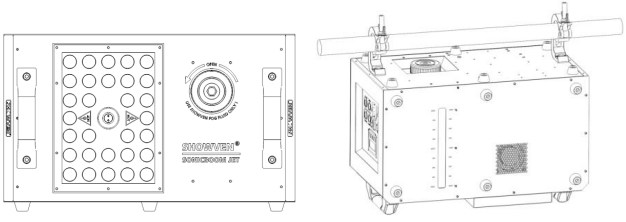

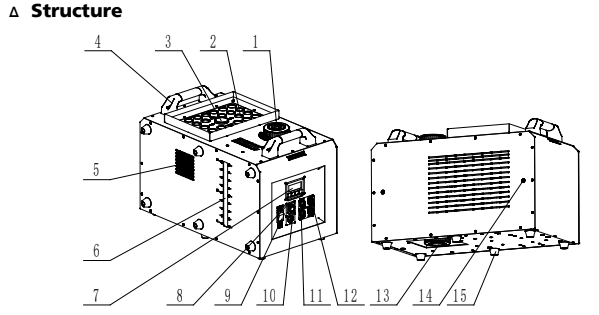

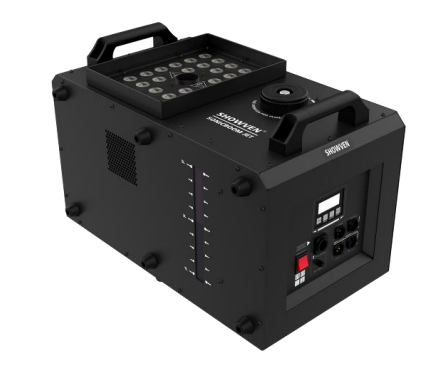

1. Top Fluid Tank Lid
2. LED
3. Output Nozzle
4. Handle
5. Cooling Fan
6. Liquid Level Window
7. LCD Screen
8. Power IN Socket
9. Power Switch
10. Fuse
11. 5-PIN DMX
12. 3-PIN DMX
13. Bottom Fluid Tank Lid
14. Safety Loop Hole
15. Foot

Δ Operation Panel
1. Control button area

MENU: Short press to switch interface, press and hold for 3 seconds can switch to the
advanced setup interface
+: Parameters up; multiplex “TIMER” (smoke output time)
-: Parameters down; multiplex “VOLUME” (smoke output start)
ENTER Confirm and save parameters, screen will blink once when save successfully.
multiplex “STOP”.
NOTE: Screen will switch to main interface automatically if not press any button in about
15s.
Example of “TIMER” setting function in the menu:
1. “set interval 30s”
2. “set duration 1s”
Press “+ / TIMER” button under main interface, SONICBOOM®start to generate smoke,

and will repeat firing 1s, interval of 30s. Press “STOP” to stop the machine.
NOTE: Manual function disabled when DMX connected.

Δ Interface
1. Welcome Interface

Display product model and software version.

2. Cycle Firing Interface

First line: Status
Second line: Countdown to next firing.

3. Main interface:

First line: Display DMX address is “1”. “:” blinks when there is DMX IN signal.
Second line: Shows machine core temperature and pressure. The machine ready for
operate only when both temperature and pressure value close to 100%.

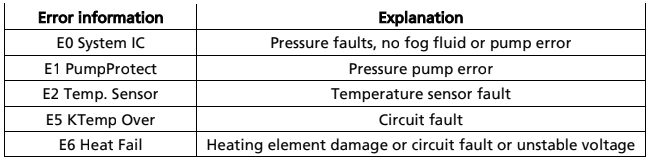

4. Error information

E0 System IC
In order to protect pump, SONICBOOM® JET with fuel detect function. When there is no
fog fluid, system can’t reach target pressure in the setting time after turn on machine,
pump will stop working and report E0. After machine report E0 please check the fluid
tank, fill it and restart the machine to clear error information.

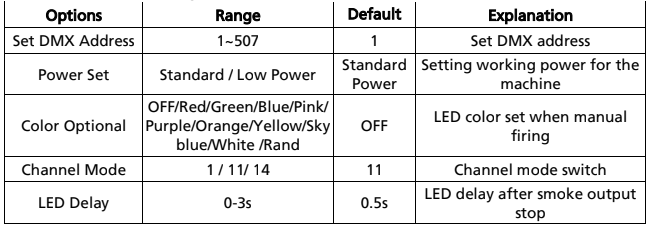

5. Setting Menu
Press “MENU” switch through setup menu.

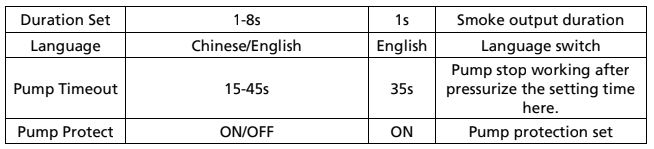

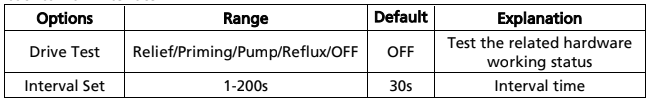

6. Advanced Menu
Press and hold “MENU” for 3s, enter advanced setting interface. Press and hold “MENU” 3s
back to main interface.

Δ DMX Control

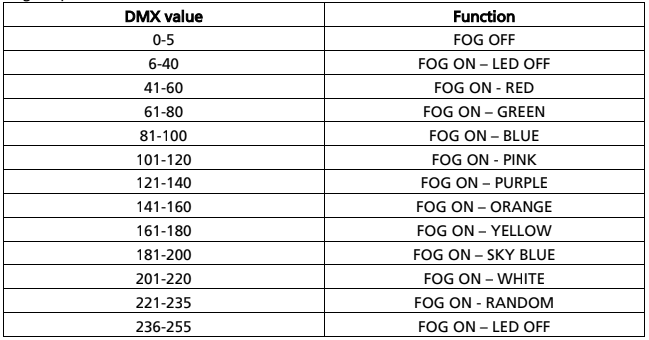

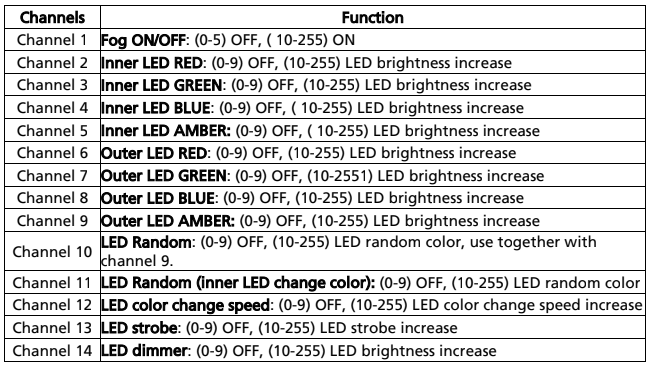

There are three DMX channel mode for SONICBOOM®JET, single channel mode, 11
channel mode and 14 channel mode switchable.
Single channel mode
Fog output and LED color controlled in the same channel.

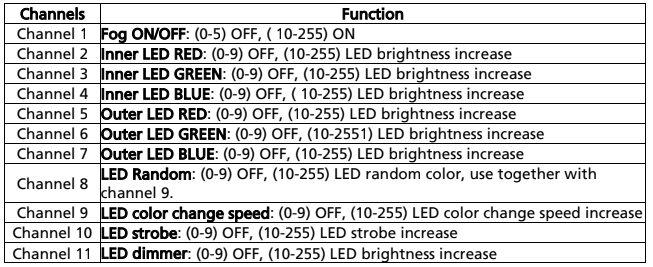

11 channels mode

14 channels mode

Δ Operation Guide
1. Installation
SONICBOOM® JET can be installed in any direction even upside down. But please
watch out for the fog fluid leakage from the top fluid tank lid.
For sideway installation as below, please make sure the fog fluid level not exceed 4.5L,
otherwise there will be fog fluid flow out from top fluid tank lid.
For upside-down installation, please place the machine in sideway first (the remaining
fog fluid should be less than 4.5L), interchange the top fluid tank lid and the bottom
fluid tank lid.
For safety, hanging installation should install safety rope.

2. Fill the machine
Fill the fluid tank with fog fluid.
For best effect please use SHOWVEN® original fluid FX-S or FX-M. Improper use of
fluid will lead to machine malfunction. Warranty will be void if any other type of fog
fluid is used.

3. Power ON SONICBOOM® JET
Connect the machine to suitable rated power supply. Make sure power supply in
consistent with the rated voltage of the equipment, and the socket must well
grounded.
Turn on the machine and allow it to heat up.
There are Standard power mode and Low power mode switchable, based on the
power supply circumstance operator can switch the power mode in the menu. When
in Low power mode the heating up time will be longer.

4. DMX setting
Set DMX address for each machine. Connect machines with DMX cable in series.
Suggest to plug in a DMX terminator into the DMX out in last unit of machine.
If operate manually, please disconnect DMX connection.

5. Firing
Once the machine has reached operating temperature, the LCD display will show “T:
100%” and P 100%. Now the machine is ready for operation.
Manual operation: Press the “– / VOLUME” to start generating fog, press “+ / STOP”
to stop.
DMX control: please operate according to the DMX control table.

6. Power OFF and packing
After each show please turn off machine, allow it cool down before packing the
machine.
Please empty the fluid tank and wash the pipe system with distilled water if not use
the machine for a long period of time.

Δ FAQ
Fluid spill
Fluid spill because heat can’t effectively transmit to fog fluid, leads to insufficient
atomization of the fog fluid in the heating pipe.
Possible Reasons:
Use low quality fog fluid instead of SHOWVEN® original fog fluid.
Use inappropriate fog fluid. For different types of fog fluid, the atomization temperature
is different.
Heating block pipe clog
Early symptom for heating aluminum pipe clog is fog fluid spill caused by insufficient
atomization. Use other brand fluid or not make regular maintenance for a long time will
definitely leads to pipe clog.

Δ Maintenance
1. Use SHOWVEN® original fog fluid FX-S or FX-M.
2. Check the filter in fluid tank before each show, clean or replace it when it is
necessary.
3. Running the machine at least once per month.

4. Clean machine regularly avoid dust, liquid accumulate on the machine.
5. Whenever storage or not use the machine for a period of time, please use distilled
water to wash the pipe system by filling the fluid bottle with distilled water and
firing the machine several times.

Δ Warranty Instructions
\ Sincere thanks for your choosing our products, you will receive quality service from us
\ The product warranty period is one year. If there are any quality problems within 7
days after shipping out from our factory, we can exchange a brand new same model
machine for you
\ We will offer free of charge maintenance service for machines which with hardware
malfunction (except for the instrument damage caused by human factors) in
warranty period. Please don't repair machine without factory permission

Below situations NOT included in warranty service:
\ Damage caused by use other type of fog fluid which is not SHOWVEN FX-S or FX-M.
\ Damage caused by improper transportation, usage, management, and maintenance,
or damage caused by human factors;
\ Disassemble, modify or repair products without permission;
\ Damage caused by external reasons (lightning strike, power supply etc.)
\ Damage caused by improper installation or use;
\ For product damage not included in warranty range, we can provide paid service.
\ Invoice is necessary when applying for maintenance service from SHOWVEN®
