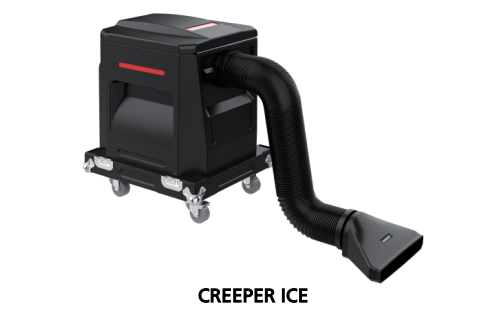

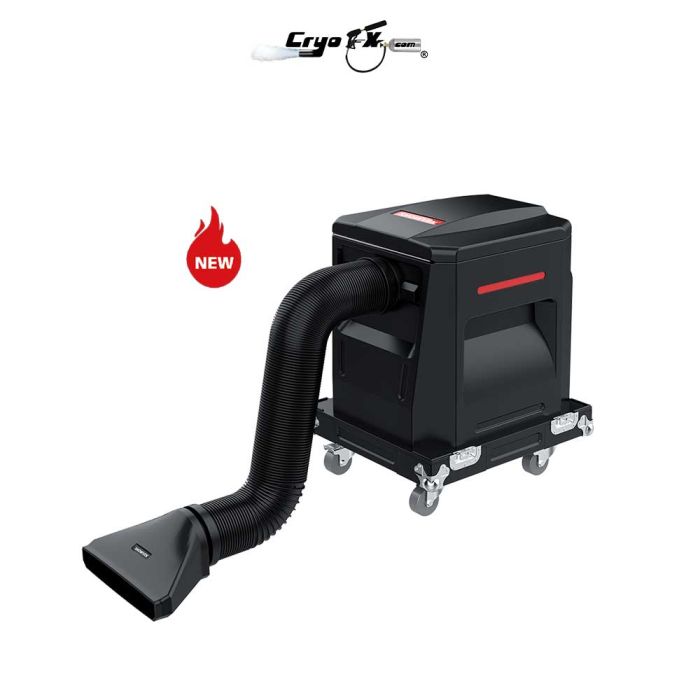

Showven Creeper ICE Low Fog Machine

Showven Creeper ICE Low Lying Fog Machine is the perfect low lying ground fogger that does use dry ice! Perfect for weddings, events indoors, and other events where fog woulds trigger smoke alarms, This Wont!.

Features and advantages for Showven Creeper ICE Low Fog Generator

• Massive fog output, large coverage area with excellent ground adherence
• CREEPER ICE can cover about 500m2, the first minute can cover about 250m2.
• Robust molded enclosure, exquisite design.
• brasion-resistant silent caster, built for complex road conditions.
• CREEPER ICE equipped with 75mm casters
• Water spray structure design, instead of immerse dry ice into water
• Achieve continuous variable fog output control.
• No mechanical lifting structure inside, better stability
• Fast ON/OFF, timely response to the stage effect requirement
• Water tank and dry ice basket separate design, longer dry ice storage in machine
• Hidden water tank, safer for operator
• Huge water and dry ice reservoir
• CREEPER ICE: 55L water reservoir, 15kg dry ice basket
• One feeding can support multi time use
• Dual/Triple heating system, meet different power supply conditions
• CREEPER ICE: 3000W and 6000W switchable
• Reserved drainage valve for easier residual water drainage
• Weather proof design
• Standard DMX control, both 3-PIN and 5-PIN

Specifications for Showven Creeper ICE Ground Fog Machine:

• Model: CREEPER ICE
• Dimension: 492 x 584 x 760mm
• Weight: 35KG
• Voltage: AC220-240V, 50/60Hz AC100-120V, 50/60Hz
• Fuse: Breaker 20A
• Work power: 3000W/6000W (230V) 1800W/3600W (120V)
• Heating Up Time: Appr. 30min @6000W Appr. 50min @3600W
• Dry Ice Capacity: 15KG
• Water Tank Capacity: 55L
• DMX-512: YES, 1 channel
• Wireless Control :YES
• Output Volume Adjustment: 50%-100%
• Coverage Area (no wind) :Appr. 500㎡
• Consumable: Dry ice, Water
• XLR Connectors: 3-PIN and 5-PIN

___________________________________________________________

SHOWVEN Technologies Co., Ltd.

Thanks for choosing SHOWVEN® CREEPER ICE series dry ice machine, we wish it will bring you
lots of exciting moments.
Please read the following manual carefully before operating this product.

Δ SAFETY CONSIDERATIONS
\ Unauthorized repair are prohibited, it may cause serious incident
\ Never store dry ice in sealed container, it may explosion due to dry ice sublimates to carbon
dioxide gas.
\ Never cover or block the nozzle when operation to avoid explosion due to the generation
of carbon dioxide gas.
\ Wear thick gloves when handling dry ice, do NOT handle with bare hands.
\ Do NOT swallow dry ice, it may lead to severe injuries.
\ Before breaking the dry ice, cover it with a piece of cloth or place it in a cloth bag, do wear
protective goggles.
\ Dry ice gives off carbon dioxide gas, which may cause difficulty breathing or suffocation.
So please make sure the space is well ventilated before operate CREEPER ICE machine, do
NOT use in confined space.
\ Make sure power supply in consistent with the rated voltage of the equipment, and the
socket must well grounded. Unplug and turn off the machine when not use.
\ The output nozzle is very hot when machine is running, do NOT touch it. Keep a minimum
distance of 2m from the nozzle to nearest object.
\ Do NOT use the product as a space heater.
\ Always disconnect the power connection before cleaning.
\ Empty the water tank before transport or storage the machine.
\ For safety reasons, please operate the product on horizontal ground only. Lock wheels to
keep from moving.
\ Use clean water as impurities may result in damage to the machine.
\ Do not operate product in ambient temperature higher than 50 .
\ Always install the machine in well ventilated place, at least 50cm space around the
machine. Do NOT cover the nozzle.
\ For adult use only, keep it away from children, fire, inflammable and explosive articles.
\ The area in front of machine may become wet during operation. Be aware of the slip
ground.
\ If the machine fails to work, please stop operation and unplug the machine. Check fuse,
power cable and socket etc. carefully, if can’t solve the problem, please contact
SHOWVEN® ([email protected]) or your local SHOWVEN partner for advise.

Δ Foreword
Thanks for choosing SHOWVEN® CREEPER ICE series dry ice machine. Please read following
manual carefully and completely before operating this product. Operate according to
instructions is very important for safety, and can elongate the service life of the machine.

Δ Functional Characteristics
\ Molded enclosure, lighter, durable and rustless.
\ Water spray design, fast ON/OFF, dry ice saving
\ No mechanical lifting structure, better stability
\ Huge ice and water reservoir, supporting long effects time
\ Continuous variable fog output adjustment, meet different application scenario
\ Water tank and ice basket separate design, longer ice storage time, achieve multi use with
single ice feeding
\ Dual or triple heating system, flexible power switch meet different power supply
\ Abrasion-resistant silent caster
\ Easier residual water drainage
\ Rain-proof structure

Δ Technical Specifications

Δ Product Overview

1. Upper Cover
2. Upper Cover Lock
3. LCD and Function Buttons
4. 3-pin XLR
5. Industrial Power Socket
6. Water Level Indicator
7. Drain Valve
8. 5-pin XLR
9. Air Switch
10. LED Indicator x3
11. Fog Outlet

1. Upper Cover
2. Upper Cover Lock
3. LCD and Function Buttons
4. LED Indicator x2
5. Fuse x2
6. Water Level Indicator
7. Auxiliary Power Input
8. Main Power Input
9. Drain
10. 5-pin XLR
11. 3-pin XLR
12. Fog Outlet

Δ Operation Panel
1. Control button area

MENU: switch through setup menu;
+: parameter up, multiplex “TIMER” (Timer Fog output when in main interface);
-: parameter down, multiplex “VOLUME” (Continuous Fog output when in main interface);
ENTER: confirm and save parameters (screen will blink once when save successfully); multiplex
“STOP”.
NOTE: Screen will switch to main interface automatically if not press any button in 15s.

Δ Interface
1. Main interface:

First Line: DMX address and Fog Output Volume, “:”blinks when there is DMX in signal.
Second Line: water temperature, when temp. reached set temp. it will shows “READY”means
the machine is ready to firing, press “VOLUME”to generate fog.
2. Error Information:

3. Setting Menu
Press “MENU” switch through setup menu.

Δ DMX Control

Δ Wireless Control
Wireless control is used to remote control the machine. Before use the wireless function please
make sure machine was ready, wireless status was ON, and no DMX cable connection.
Remote controller:
A. Fog output START
B. Fog output STOP

If the wireless remote is not working, please check the wireless function setup
on machine. Press “MENU” find “wireless control” switch it into “ON”, press
“ENTER” to save the setup. Remote control match with machine was also in
this interface, press any key on remote control for 1s, the LCD screen will blink
once, means the match was successful.
NOTE: Remote controller is optional configuration. You can buy it separately
from SHOWVEN or SHOWVEN® authorized partners.

Δ Operation

1. Installation
Check the machine and accessories, ensure it is in good status. Place the machine on a flat
surface, tilting may result in inaccurate water level alarm. Lock wheels to keep from moving.
Due to there are a huge amount of hot water inside machine, please do make sure the
machine are firmly installed.
2. Fill the machine with water
Open the upper cover and filling the machine with water until reached the Max. water level.
CREEPER ICE water tank is 55L, CREEPER ICE PLUS is 75L.
3. Power ON Creeper ICE
Connect the machine to suitable rated power supply. Please ensure power supply meets the
requirement. Always connect the machine to a protected circuit and ensure it is properly
grounded.
CREEPER ICE with dual power supply design, users can use single or dual power to heating up.
Whenever in single or dual power mode, the main power input must connected, the
corresponding LED indicator will light up when power supply connected successfully.
CREEPER ICE PLUS use industrial power socket. Turn on the air switch when power connected,
and the LED indicator will light up.
4. Fill the machine with dry ice
Open the upper cover, put the dry ice into basket. Close the upper cover and lock it. If filling
the ice basket outside of machine, please make sure it well fitted when put it back to machine.
Wear thick gloves and wear protective goggles when handling dry ice, do NOT handle with
bare hands.

5. Setting and Firing
When machine was ready, water reached set temp., press “VOLUME” of the machine will start
to work. When water temp. lower than 30 , machine will stop working automatically, operator
can also press STOP to stop the machine.
If use DMX console control, please set DMX address and connect with DMX console (such as
FXcommander) via DMX cable, and firing by follow the previously introduced DMX channel
information.
6. Power OFF and clean up
1 To turn off the machine, please POWER OFF and unplug the power cable.
2 Please empty the dry ice basket. Make sure that the remaining dry ice is disposed of in
accordance with local regulations and is not accessible to children or other unrelated
persons.
3 If need to transport the machine after show, please drain the remaining water when it is
cool down. Please be aware of the hot water.

Δ Product Package


Δ Caster Installation
Please install the caster according to below schematic diagram. The brake wheel must installed
in specific position accordingly.

Δ Maintenance
1. Running the machine at least once per month.
2. Clean machine regularly avoid dust, liquid accumulate on the machine.
3. Whenever storage or not use the machine for a period of time, please drain the
machine and keep it dry.

Δ Warranty Instructions
\ Sincere thanks for your choosing our products, you will receive quality service from us.
\ The product warranty period is one year. If there are any quality problems within 7 days
after shipping out from our factory, we can exchange a brand new same model machine
for you.
\ We will offer free of charge maintenance service for machines which with hardware
malfunction (except for the instrument damage caused by human factors) in warranty
period. Please don't repair machine without factory permission.
Below situations NOT included in warranty service:
\ Damage caused by improper transportation, usage, management, and maintenance, or
damage caused by human factors;
\ Disassemble, modify or repair products without permission;
\ Damage caused by external reasons (lightning strike, power supply etc.)
\ Damage caused by improper installation or use;
For product damage not included in warranty range, we can provide paid service.
Invoice is necessary when applying for maintenance service from SHOWVEN®
