CO2 Tank Size Calculator - Flow, Size, Duration

CO2 Tank Size Calculator - Flow, Size, Duration | CryoFX

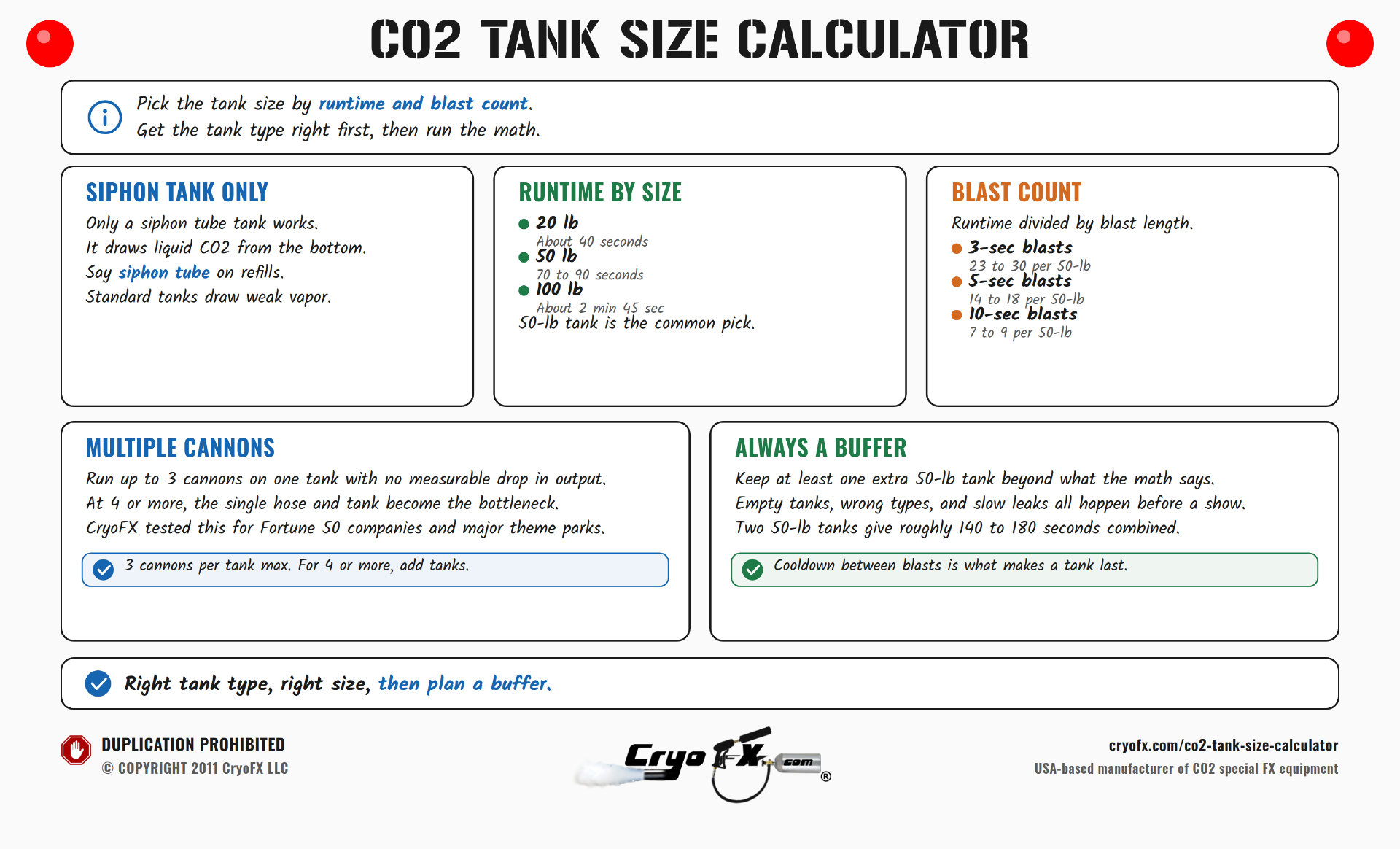

CO2 tank size calculator for special effects: runtime, blast count, and event planning

Getting the CO2 tank size right is one of the most practical decisions in CO2 special effects planning. Too little CO2 and you run out mid-show. Too much and you've over-budgeted on a resource that has a shelf life.



This guide covers runtime numbers for every standard CO2 tank size, how to calculate blast counts, how multiple cannons affect tank performance, and how to build out tank setups for different event types. There's also a tank runtime calculator on the CryoFX website with interactive fields for any configuration, a link to that tool is included below.

The one non-negotiable rule before any tank calculation

Only a siphon tube tank (also called a liquid withdrawal tank) works for CO2 special effects.



Standard CO2 tanks draw vapor from the top of the tank. That vapor is what gives your CO2 soda machine or fire suppression system the gas it needs. For CO2 cannons, jets, and cryo guns, you need liquid CO2, and that means the tank must have a siphon tube that draws from the bottom where the liquid phase sits.



When you order CO2 tank refills, specify "siphon tube" or "liquid withdrawal" every time. If your gas supplier delivers a standard tank by mistake, your CO2 cannon output will be weak, inconsistent, and full of dry ice chunks instead of a clean plume.



This is the single most common setup error new operators make. Get the tank type right first, then run the calculations.

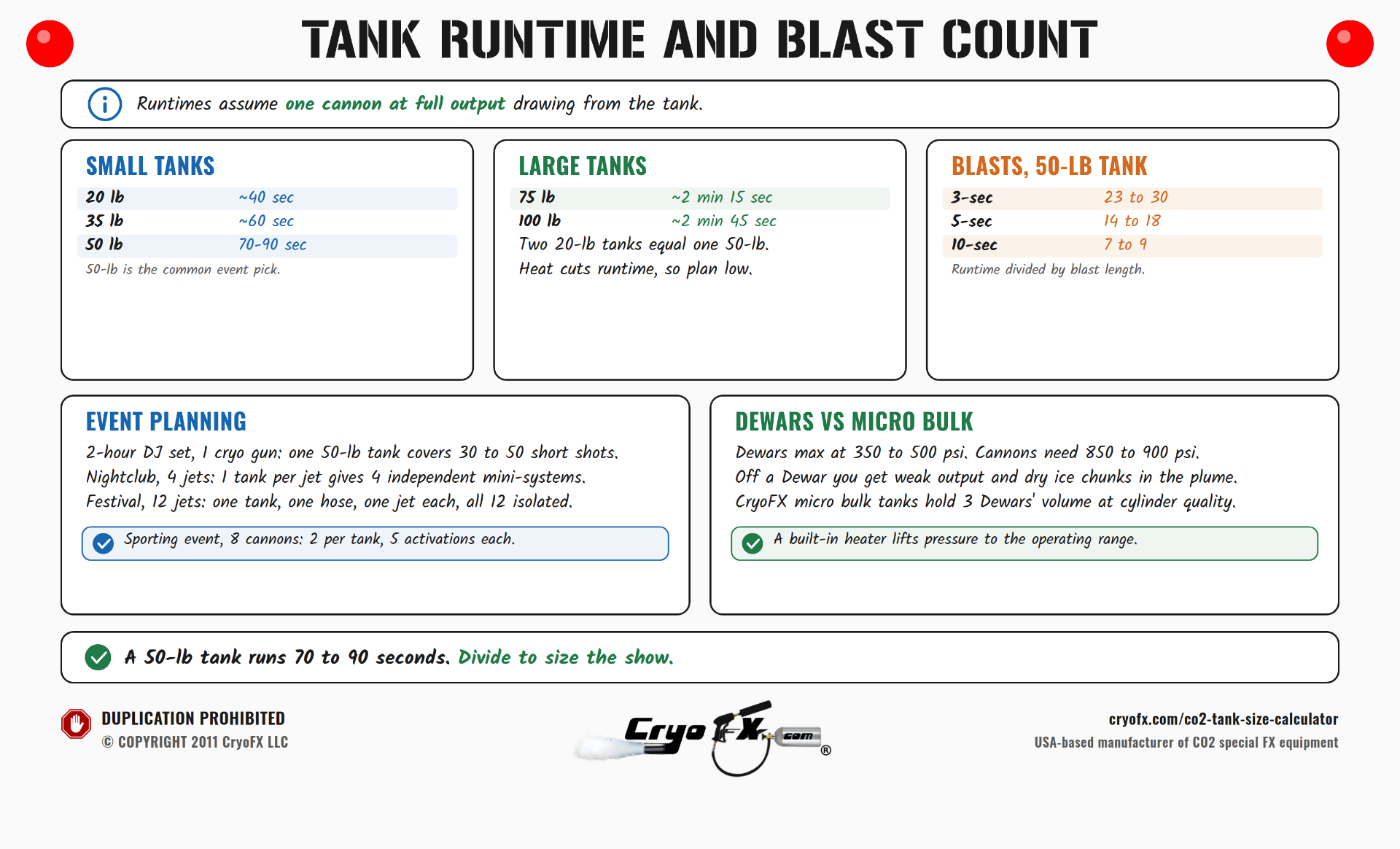

CO2 tank runtime for special effects: the numbers

These runtimes assume a single CO2 cannon or jet drawing from the tank. Blasts are full-output activations, not partial or low-pressure.



CO2 Tank Size Total Runtime
20 lb ~40 seconds
35 lb ~60 seconds
50 lb 70-90 seconds
75 lb ~2 min 15 sec
100 lb ~2 min 45 sec



The 50-pound CO2 tank is the most common recommendation for events. It's the right balance of runtime, portability, and cost. Two 20-pound tanks can substitute for a 50-pound in situations where carrying a 50-pound tank isn't practical, the combined output is roughly equivalent.



Temperature affects runtime. Hot ambient conditions reduce the liquid volume inside the tank, which shortens runtime. A tank used on a 100°F outdoor stage in the summer will perform differently than the same tank in a climate-controlled venue. Plan conservatively in heat.

Calculating blast count from tank runtime

Blast count is simple division:



Total runtime ÷ blast duration = number of blasts



Examples using a 50-pound CO2 tank (70-90 sec runtime):



  • 3-second blasts: 70 ÷ 3 = 23 blasts / 90 ÷ 3 = 30 blasts → 23 to 30 blasts
  • 5-second blasts: 70 ÷ 5 = 14 blasts / 90 ÷ 5 = 18 blasts → 14 to 18 blasts
  • 10-second blasts: 70 ÷ 10 = 7 blasts / 90 ÷ 10 = 9 blasts → 7 to 9 blasts



A 2-hour DJ set running short 2 to 3-second shots typically works through one 50-pound tank over the course of the night, roughly 30 to 50 activations spread across a 2-hour performance with natural cooldown time between blasts.



One note on cooldown: CO2 cannons require time between activations for the valve to return to operating temperature. If the DJ fires too quickly and skips the cooldown period, the valve can freeze open and discharge the remaining CO2 uncontrolled. That empties the tank instantly. Proper cooldown intervals between blasts are what make the tank last.

Multiple cannons on one tank

Running multiple CO2 cannons from a single CO2 tank does not diminish the per-cannon output, up to a point.



CryoFX has tested this directly for Fortune 50 companies and major theme parks, including Disney. Up to 3 CO2 cannons on one tank produce no measurable reduction in output. The CO2 expands enough during the blast that 3 cannons share the tank without choking each other.



At 4 or more cannons on one tank, diminishing returns appear. The system becomes supply-limited, the bottleneck is the combination of one CO2 hose diameter and one tank trying to feed more demand than they can support simultaneously. Output drops across all connected cannons.



The practical rule: 3 cannons per tank maximum to maintain full output. For 4 or more cannons, use additional tanks.

Event-type tank planning examples

2-hour DJ set with 1 cryo gun:

One 50-pound CO2 tank. That covers 30 to 50 short activations across the set. A 25 to 30-foot CO2 hose positions the tank behind the stage where the audience doesn't see it. For DJs who don't want to manage a 50-pound tank, 2 × 20-pound CO2 tanks provide approximately equivalent runtime and are easier to transport.



Nightclub with 4 CO2 jets running Friday and Saturday:

The simplest setup is 1 CO2 tank per jet, giving you 4 independent mini-systems (1 tank + 1 CO2 hose + 1 jet each). Tanks get swapped between show nights. This keeps the system modular and limits any failure to one mini-system rather than taking down all 4 jets at once.



For clubs that don't want to swap tanks between sets, CryoFX offers 2-to-1, 3-to-1, and 4-to-1 manifold setups, multiple CO2 tanks feeding one jet. There's a custom manifold builder on the CryoFX website where you can configure any combination of tank inputs and jet outputs with the right fittings.



Festival stage with 12 CO2 jets:

One CO2 tank + one CO2 hose + one jet per mini-system, all 12 independent. The reason for this is failure isolation: if one mini-system has a problem, only that unit goes offline. The rest of the show continues. Group all 12 into one system and any single failure can take down everything.



The CO2 tank farm sits off to the side or behind the stage, never pointed at the audience. All CO2 tanks are strapped down to the stage structure. All CO2 hoses are secured wherever they run. No loose hoses on a festival stage, ever.



Sporting event: 8 cannons, 5-activation plan:

Group 2 CO2 cannons to 1 CO2 tank, giving 4 mini-systems. Each mini-system has enough CO2 for the 5 short activations during player entrance. The grouping is practical because 5 activations at 3-4 seconds each is well within the runtime of a single 50-pound tank shared between 2 cannons.

Always plan a buffer

Always have at least one extra 50-pound CO2 tank on hand beyond what the calculation says you need.



Empty tanks come from suppliers occasionally. Wrong tank types (non-siphon) get delivered. A fitting develops a slow leak and reduces usable CO2 before the show. Having a buffer tank removes all of those scenarios as show-stoppers.



Two 50-pound CO2 tanks together give approximately 140-180 seconds of combined runtime, enough cushion for most event applications.

Advanced options: micro bulk tanks and Dewars

Large Dewar tanks are sometimes considered for multi-jet nightclub installations because of their high CO2 volume capacity. Dewars max out at 350-500 psi for high-pressure models. Standard CO2 cannons need 850-900 psi for proper output. Running CO2 jets off a Dewar produces weak output, dry ice chunks in the plume, and inconsistent performance. Dewars don't work for CO2 special effects.



CryoFX addressed this with a patented micro bulk tank solution: a micro bulk CO2 tank with a built-in heater that raises the CO2 pressure to the operating range required for full-output CO2 cannons. These tanks have the volume capacity of 3 Dewar tanks and the output quality of a 50-pound cylinder, with CO2 that comes out notably colder and denser than a standard cylinder, producing a better-looking plume.



Several CryoFX large-venue installations now use these micro bulk tanks. The patented fill system also allows the micro bulk tanks to be topped off from Dewars on-site, making them practical for venues that need continuous CO2 availability without constant cylinder swaps.

A note on other industries using CO2 tank calculators

CO2 tank calculators for grow rooms, hydroponic operations, and aquariums use completely different formulas than special effects calculations. Those applications focus on supplementing atmospheric CO2 concentration to a target PPM for plant growth, calculating room cubic footage against a target CO2 level in a totally different way than special effects runtime math.



If you're looking for a grow room CO2 calculator or aquarium CO2 dosing calculator, this isn't it. The CO2 tank runtime numbers above apply specifically to CO2 cannons, CO2 jets, and handheld cryo guns for live events and entertainment.

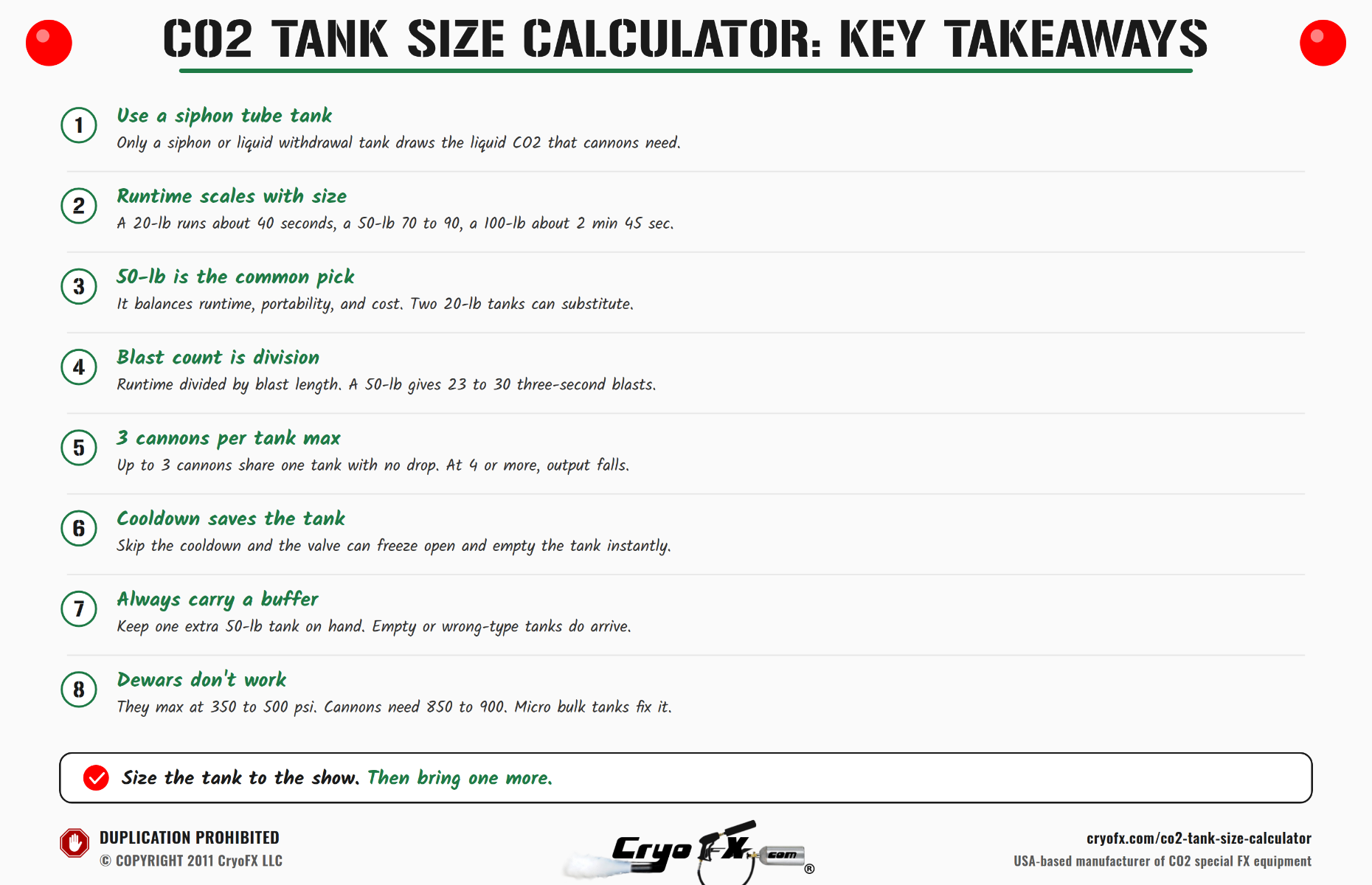

FAQs

What happens if I use a non-siphon CO2 tank with my CO2 cannon?

Output will be weak and inconsistent. You'll likely see dry ice chunks instead of a clean vapor plume. The cannon will fire, but the effect quality drops significantly. Always use a siphon tube (liquid withdrawal) CO2 tank for special effects.



How many blasts can I get from a 50-pound CO2 tank?

Depends on blast duration. At 3-second blasts, expect 23 to 30 blasts. At 5-second blasts, 14 to 18 blasts. At 10-second blasts, 7 to 9 blasts. Runtime is 70-90 seconds total from a 50-pound siphon tank.



Can I run 4 CO2 cannons off one tank?

You can, but output will be reduced across all cannons. Three cannons per tank is the maximum for full output. At 4 or more cannons, the single CO2 hose and tank become the bottleneck and all cannons fire at reduced volume.



Why don't Dewar tanks work for CO2 cannons?

Dewars max out at 350-500 psi. CO2 cannons require 850-900 psi for proper performance. The pressure gap means CO2 cannons connected to a Dewar will produce poor output. CryoFX's patented micro bulk tank system solves this for high-volume installations.



How much buffer CO2 should I bring to an event?

At minimum, one extra 50-pound CO2 tank beyond your calculated requirement. More is always better, you can't produce CO2 during a show if you run short, and empty or wrong-type tanks from suppliers do happen.

For everything you need to know about CO2 cannon tank requirements and system setup, see the CO2 cannon tank requirements guide.



Need CO2 tanks for your event or installation? Check CO2 tanks for sale at CryoFX.com.
