CO2 cannon backpack: how a backpack cannon works

Most CO2 cannon setups are tethered to a fixed point. The tank sits on the floor or to the side of the stage, a hose runs to the cannon, and the operator stays within that radius. A CO2 backpack cannon changes the math entirely. The operator becomes the setup.

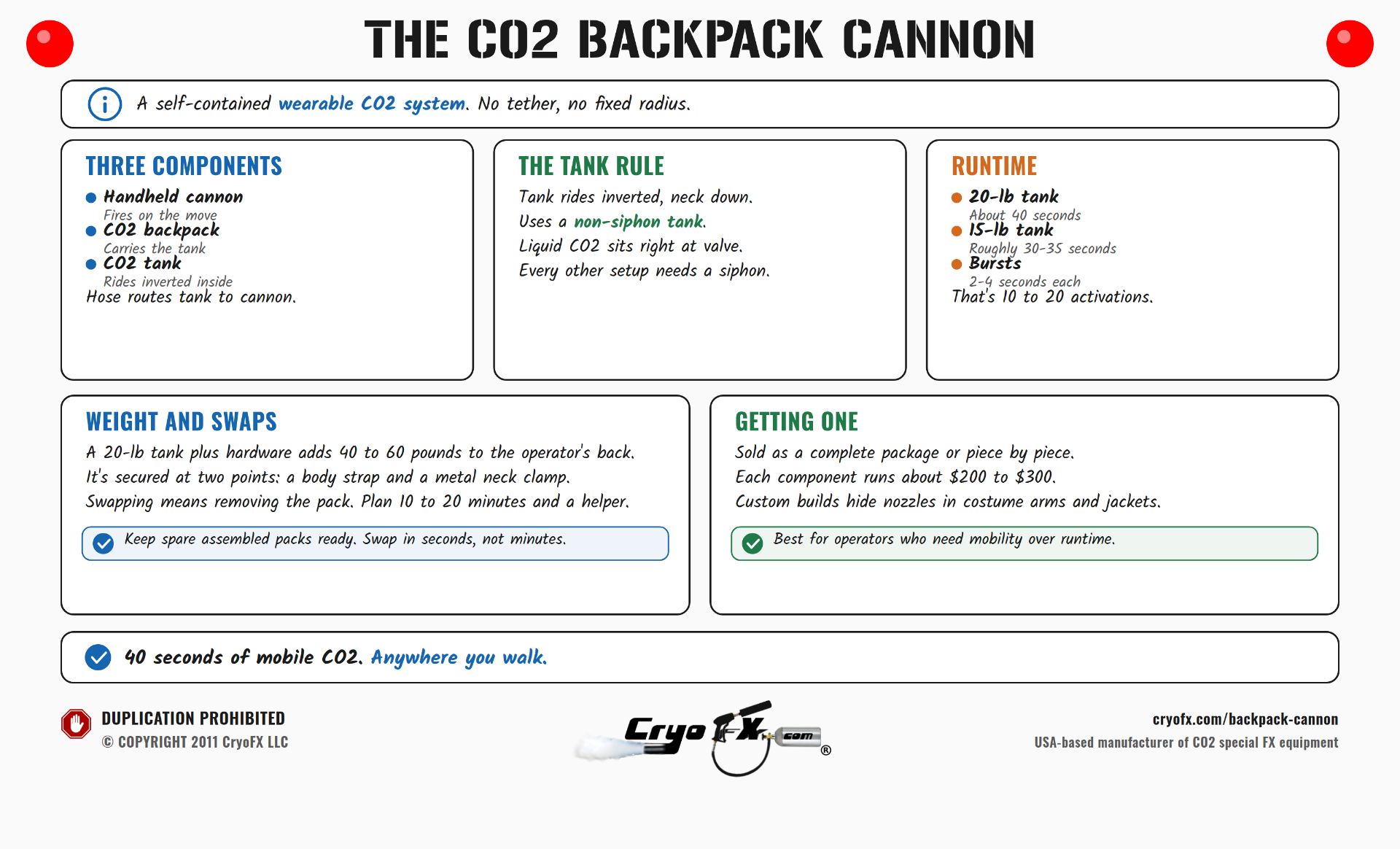

What a CO2 backpack cannon actually is

A CO2 backpack cannon is a self-contained, wearable system. The three components are a handheld CO2 cannon, a CO2 backpack, and a CO2 tank. All three work together so the operator can move anywhere without being tethered to a floor tank or an outlet.

The tank lives in the backpack. The hose routes from the tank up through the pack and connects to the handheld CO2 cannon. The operator carries all of it and fires on the move.

This is the version of the system that makes a performer, brand ambassador, or mobile entertainer completely self-sufficient. No stage position required. No hose management. No fixed radius.

For context on how this fits within the broader range of CO2 cannon equipment, the CO2 cannon types guide covers the full spectrum from handheld cannons to fixed jet systems to backpack configurations.

The tank rule that nobody explains clearly

Here's the one thing that separates a CO2 backpack cannon from every other CO2 cannon system: the tank type is different.

Every other CO2 cannon setup, handheld, fixed jet, DMX-controlled, all of it, requires a siphon tube CO2 tank (also called a dip tube or dip tube tank). The siphon tube draws liquid CO2 from the bottom of the tank. Liquid CO2 is what creates the white, dense plume that makes special effects work. A standard upright gaseous CO2 tank produces no effect.

In a backpack system, the tank rides inverted. The neck of the tank points down toward the base of the person's back, not up. When the tank is upside down, a siphon tube tank no longer functions the way it's supposed to, the liquid CO2 moves away from the tube, and you end up drawing gas instead of liquid.

So you flip the logic. The CO2 backpack cannon uses a regular (non-siphon) CO2 tank precisely because the inverted orientation puts the liquid CO2 right at the valve where it needs to be. No siphon tube required. The inversion does the job the siphon tube normally does.

The maximum tank size that fits in the backpack is a 20-pound CO2 tank. Smaller tanks also fit. A 15-pound CO2 tank gives roughly 30-35 seconds of runtime. A 20-pound CO2 tank gives approximately 40 seconds. That's not a typo. 40 seconds is the ceiling.

Runtime, limitations, and the swap reality

A CO2 backpack cannon is a burst-effect tool. It's not designed for sustained output across a full set. Think about it in terms of what 40 seconds actually gives you: done correctly in 2-4 second bursts at the right moments, that's 10 to 20 activations. Used liberally, it runs out fast.

When the tank runs out, swapping it isn't quick. The tank is secured inside the backpack at two points, a strap around the body of the tank and a metal clamp at the neck. Getting to it requires removing the entire backpack. With the tank inverted and secured, this realistically takes one person helping the operator plus 10 to 20 minutes to complete.

The practical solution for performers who need to swap mid-show is to have multiple fully assembled backpack systems ready. Slip one off, slip another on, and you're back in action in seconds instead of minutes.

The weight is also a real factor. A 20-pound CO2 tank inside the backpack, combined with the hardware, can add 40 to 60 pounds to the operator's back. This affects balance and stamina, especially for performers who are also moving, dancing, or working a crowd on stilts or in costume. It's closer to wearing a scuba tank than carrying a backpack.

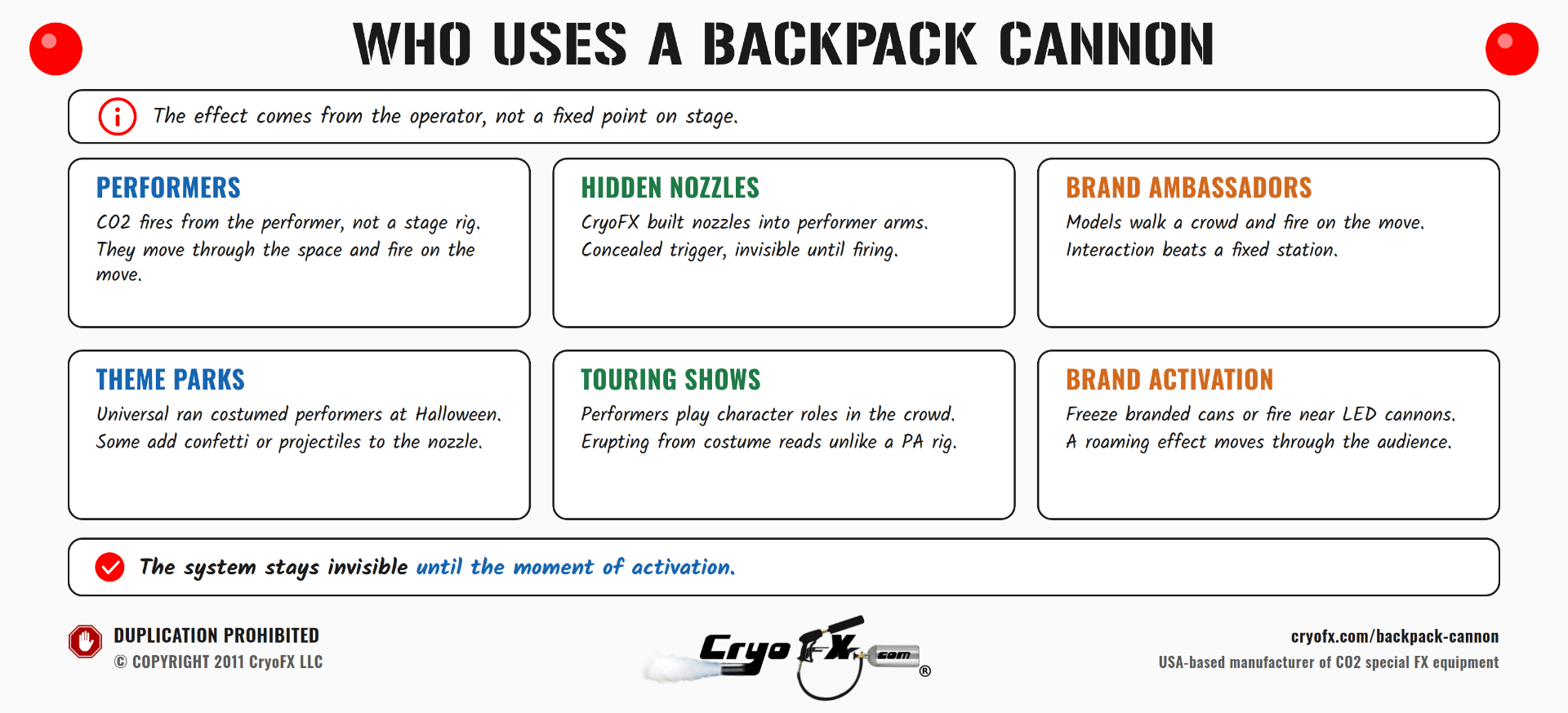

Who uses a CO2 backpack cannon

The backpack cannon appeals to a specific type of operator: one who needs mobility over runtime.

Performers use them when the CO2 effect needs to come from them, not from a fixed point on stage. CryoFX has built custom backpack systems where the nozzles were integrated into the performer's arms, hidden inside costume pieces, with a concealed button trigger. The CO2 sprayed from the arms themselves during live performances. The operator could switch backpacks mid-show. The entire system was invisible until the moment of activation.

Brand activations use them when models or brand ambassadors walk through a crowd and need to interact with people rather than standing at a fixed station. Walking through a festival or nightclub environment and firing CO2 on the move creates a different kind of engagement than a cannon mounted on a stage.

Theme parks use them during seasonal events like Halloween. Universal and other major theme parks have deployed costumed performers with backpack CO2 systems, sometimes combined with confetti or other projectiles loaded into the cannon nozzle, so the CO2 fires the projectile and then follows with the white plume.

Touring productions have used them with performers playing specific character roles, the visual of a person walking through a crowd and erupting with CO2 from a costume reads completely differently than the same effect coming from the PA system rig.

The system also works for brand activation in entertainment contexts: freezing branded cans, shooting CO2 near LED cannons with a logo printed on them, or creating a roaming effect that moves through an audience rather than above them.

Getting a CO2 backpack cannon from CryoFX

CryoFX offers the CO2 backpack cannon both as an off-the-shelf package and as a custom build.

The standard package comes as a complete system: handheld CO2 cannon, CO2 backpack, and CO2 tank. Each piece can also be purchased individually if you're adding to a system you already have. Custom configurations are available for performers who need specific nozzle placements, hidden routing through costume pieces, or other modifications.

Pricing for each component is typically in the $200-$300 range. Contact CryoFX for exact configuration and availability.

If you're ready to explore options, see the CO2 backpack cannon for sale product page.

Frequently asked questions

Does a CO2 backpack cannon use a siphon tank? No. This is the most important distinction between backpack cannons and every other CO2 special effects system. Because the tank rides inverted in the backpack, a regular (non-siphon) CO2 tank is used. The inverted position puts liquid CO2 at the valve naturally, making the siphon tube unnecessary.

How long does a CO2 backpack cannon last on one tank? A 20-pound CO2 tank (the largest size that fits) gives approximately 40 seconds of total runtime. A 15-pound tank gives roughly 30-35 seconds. These are short bursts, so timing activations correctly matters.

Can I swap the tank during a performance? Yes, but it takes the full backpack off and typically requires a second person. The swap process is 10 to 20 minutes. For performers who need to swap mid-show, CryoFX recommends having a second fully assembled backpack system ready, so the exchange takes seconds instead of minutes.

What's the total weight of the backpack system with a full tank? With a 20-pound CO2 tank plus the hardware and backpack, the operator carries 40 to 60 pounds on their back. This affects balance and stamina, which needs to be factored into any performance that involves movement.

Can CryoFX build a custom backpack cannon with hidden nozzles? Yes. CryoFX has designed systems with nozzles concealed in costume arms, jackets, and other performer gear. Contact CryoFX directly to discuss the custom build process, timeline, and what's needed from you to get started.

Who are the main users of CO2 backpack cannons? Performers who need the CO2 effect to come from them rather than a fixed stage point use backpack cannons most often. Brand ambassadors use them at festivals and nightclub events to fire CO2 while moving through crowds. Theme parks deploy them with costumed performers during seasonal events. Touring productions use them for character roles where the performer carries the effect with them throughout the show.

Why is there a maximum tank size for the CO2 backpack system? The maximum CO2 tank that fits in the CryoFX backpack is 20 pounds. Tank size is constrained by the physical dimensions of the backpack housing and the weight the system is designed to carry. A 20-pound tank plus hardware and the backpack itself already adds 40 to 60 pounds to the operator's back, which affects balance and stamina for performers who are moving during the show.

What is the best strategy for managing the short runtime of a backpack cannon? Treat the backpack cannon as a burst-effect tool and time activations at highlight moments. Firing in 2 to 4 second bursts gives 10 to 20 activations per tank. For shows requiring more activations, have a second fully assembled backpack system ready. Swapping the entire rig takes seconds, while changing the tank inside the backpack requires removing the pack and takes 10 to 20 minutes.

How does a CO2 backpack cannon compare to a tethered handheld setup? A tethered setup connects a CO2 cannon to a floor tank via hose, limiting the operator to that hose radius. A backpack cannon carries the tank on the operator's back, allowing full crowd mobility with no tether. The tradeoff is runtime: a 20-pound backpack tank gives about 40 seconds total, versus the much larger siphon tanks a tethered floor setup can accommodate.
